H6812-1200A-5A | CT | Split Core | Size 4 | 5.5in x 2.5in ID | 1200A:5A | Veris

1200 A Input 5 A Output Current Transformer, Split-Core, 5-1/2 x 2-1/2 in (Large)

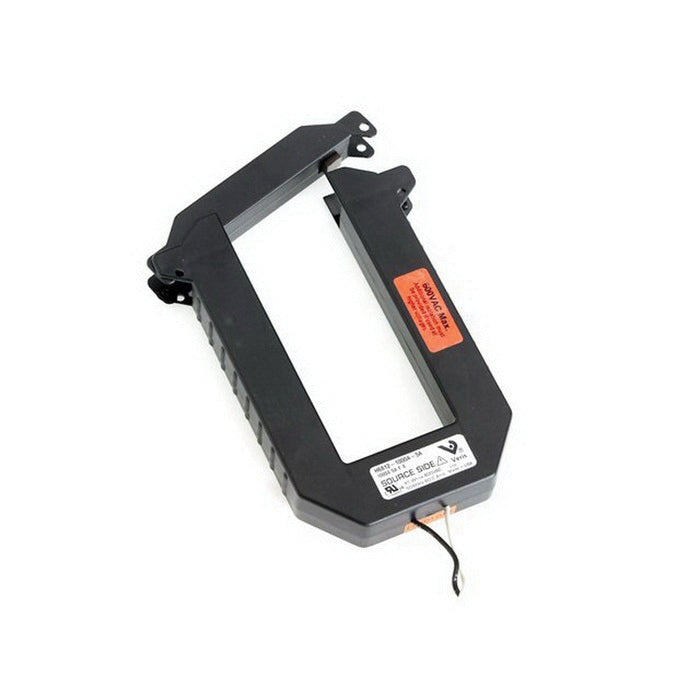

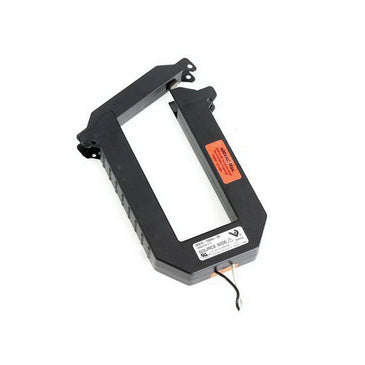

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for H6812-1200A-5A

CT | Split Core | Size 4 | 5.5in x 2.5in ID | 1200A:5A

Veris’ split-core and solid-core current transformers provide a 0-5AAC output for use with transducers, data loggers, and chart recorders.

Item Number	H6812-1200A-5A
Brand	Veris
Accuracy	+/-1% of Reading from 10 to 100% of Rated Current
Current Core	Split Core
Current Measurement Range	0 - 1200 A
Dimensions	6.0" (151 mm) W x 7.9" (201 mm) L x 1.2" (30 mm) H
Environmental Conditions	Humidity Range: 0 to 95% Non-Condensing; Storage Temperature: -40 to 158 °F
Frequency Rating	50 - 60 Hz
Mounting	Split-Core
Operating Temperature	5 - 140 °F
Output Specifications	5 A
Product Type	Current Transformer
Range	H681X-A
Sensor	Current Sensor (Hawkeye)
