H6812-1000A-.3VU | CT | SplitCore | InstrumentGrade | 5.5inx2.5inID | 1000A to 0.333V | Veris

1000 A Input 0.333 VAC Output Current Transducer, Split-Core, 5.73" x 2.47" (Large), UL2808 Listed

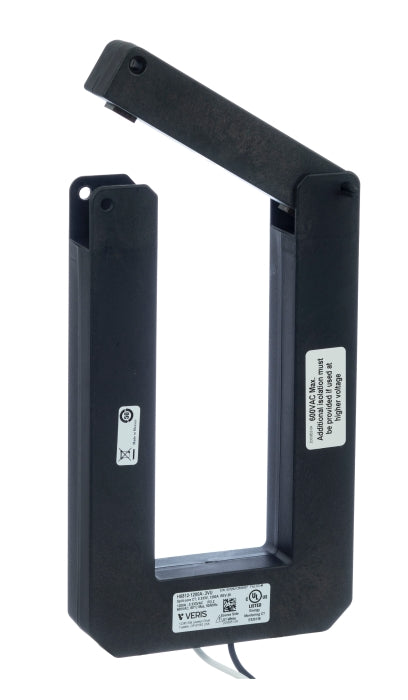

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for H6812-1000A-.3VU

CT | SplitCore | InstrumentGrade | 5.5inx2.5inID | 1000A to 0.333V

The H681x-V series of current transducers provide a standard voltage output.

Item Number	H6812-1000A-.3VU
Brand	Veris
Accuracy	Meets or exceeds accuracy requirements specified in IEC 61869-2; Table 201; Class 1
Current Core	Split Core
Current Measurement Range	0 - 1000 A
Dimensions	4.91” (125 mm) W x 8.12” (206 mm) L x 1.16” (30 mm) H
Environmental Conditions	Humidity Range: 0 to 95% Non-Condensing; Storage Temperature: -40 to 158 °F
Frequency Rating	50 - 60 Hz
Mounting	Split-Core
Operating Temperature	5 - 140 °F
Output Specifications	0.3 V
Product Type	Current Transducer
Range	H681X-V
Sensor	Current Sensor (Hawkeye)
