Documents: H6811-600A-1VU
H6811-600A-1VU | CT | Split Core | Instrument Grade | 2.9in x 2.5in ID | 600A to 1V | Veris
600 A Input 1 VAC Output Current Transducer, Split-Core, 2.9" x 2.46" (Medium), UL2808 Listed

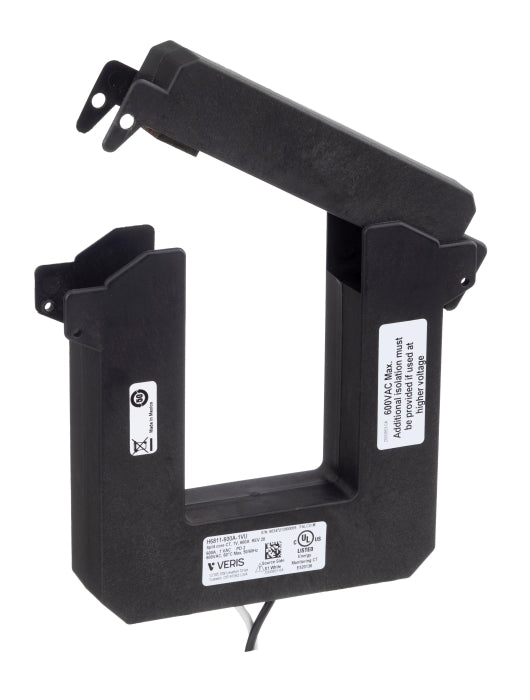

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H6811-600A-1VU
Overview Details for H6811-600A-1VU
The H681x-V series of current transducers provide a standard voltage output.
- High accuracy
- UL2808 Listed
The H681x-V series of current transducers provide a standard voltage output.
- High accuracy
- UL2808 Listed
Specifications
Item Number | H6811-600A-1VU |
Brand | Veris |
Accuracy | Meets or exceeds accuracy requirements specified in IEC 61869-2; Table 201; Class 1 |
Current Core | Split Core |
Current Measurement Range | 0 - 600 A |
Dimensions | 5.83” (148 mm) W x 5.36” (136 mm) L x 1.2” (31 mm) H |
Environmental Conditions | Humidity Range: 0 to 95% Non-Condensing; Storage Temperature: -40 to 158 °F |
Frequency Rating | 50 - 60 Hz |
Mounting | Split-Core |
Operating Temperature | 5 - 140 °F |
Output Specifications | 1 V |
Product Type | Current Transducer |
Range | H681X-V |
Sensor | Current Sensor (Hawkeye) |
