H6811-400A-5A | CT | Split Core | Instrument Grade | 2.9in x 2.5in ID | 400A to 5A | Veris

400 A Input 5 A Output Current Transformer, Split-Core, 2.9 x 2-1/2 in (Medium)

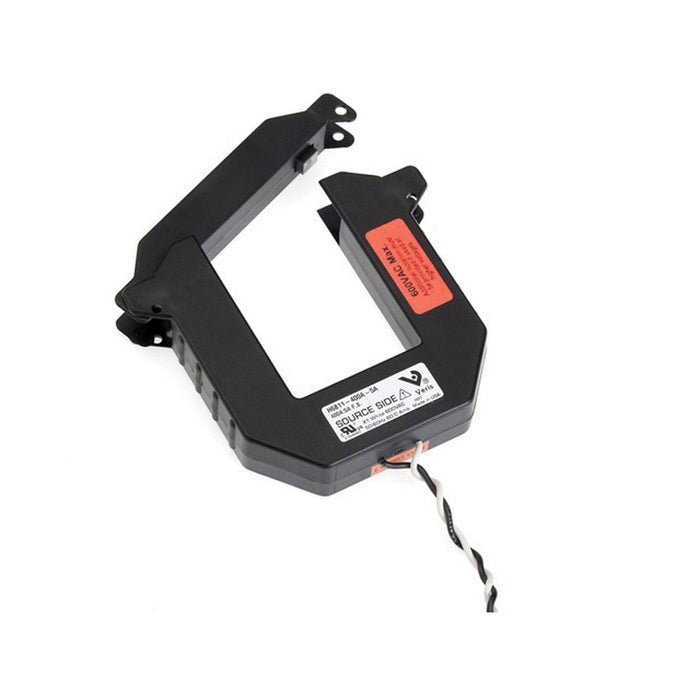

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H6811-400A-5A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris H6811-400A-5A Documents

CE Declaration Datasheet Installation Guide More Info

Overview

Details for H6811-400A-5A

The H681x-V Series of 1 volt and 0.333 volt split-core current transformers (CTs) provide secondary AC voltage proportional to the primary (sensed) current. For use with power meters, data loggers, chart recorders, and other instruments, the H681x-V series CTs provide a costeffective means to transform electrical service amperages to avoltage compatible with monitoring equipment. Note: See the H681x-5A Series datasheet for 5A output models.

Specifications

Item Number	H6811-400A-5A
Brand	Veris
Accuracy	+/-1% of Reading from 10 to 100% of Rated Current
Current Core	Split Core
Current Measurement Range	0 - 400 A
Dimensions	6.0" (151 mm) W x 5.2" (132 mm) L x 1.2" (30 mm) H
Environmental Conditions	Humidity Range: 0 to 95% Non-Condensing; Storage Temperature: -40 to 158 °F
Frequency Rating	50 - 60 Hz
Mounting	Split-Core
Operating Temperature	5 - 140 °F
Output Specifications	5 A
Product Type	Current Transformer
Range	H681X-A
Sensor	Current Sensor (Hawkeye)
