H6810-200A-5A | CT | Split Core | Instrument Grade | 1.2in x 1.3in ID | 200A to 5A | Veris

200 A Input 5 A Output Current Transformer, Split-Core, 1.2 x 1.3 in (Small)

Brand: VerisSKU: H6810-200A-5A

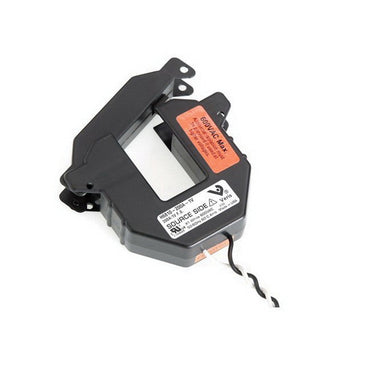

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for H6810-200A-5A

Veris split-core current transformers provide a 0 to 5A AC output.

Item Number	H6810-200A-5A
Brand	Veris
Accuracy	+/-1% of Reading from 10 to 100% of Rated Current
Current Core	Split Core
Current Measurement Range	0 - 200 A
Dimensions	4.8" (121 mm) W x 4" (100 mm) L x 1.2" (30 mm) H
Environmental Conditions	Humidity Range: 0 to 95% Non-Condensing; Storage Temperature: -40 to 158 °F
Frequency Rating	50 - 60 Hz
Mounting	Split-Core
Operating Temperature	5 - 140 °F
Output Specifications	5 A
Product Type	Current Transformer
Range	H681X-A
Sensor	Current Sensor (Hawkeye)
