H6810-100A-1VU | CT | Split Core | Instrument Grade | 1.2in x 1.3in ID | 100A to 1V | Veris

100 A Input 1 VAC Output Current Transducer, Split-Core, 1.4" x 1.4" (Small), UL2808 Listed

Veris | H6810-100A-1VU

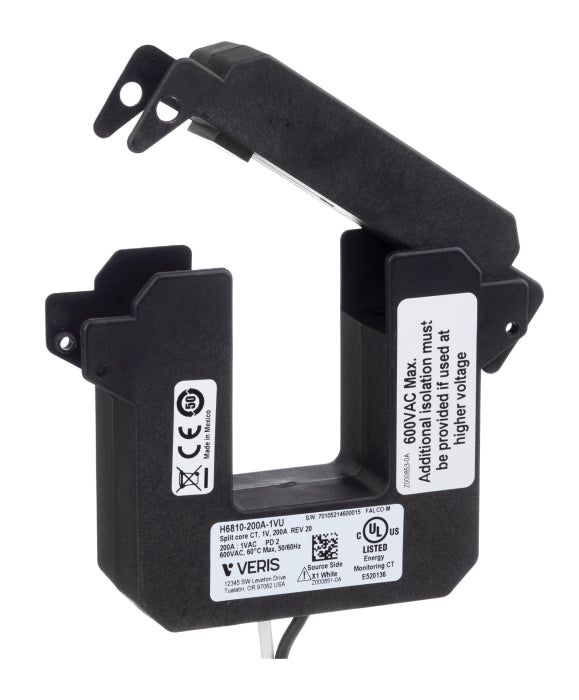

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H6810-100A-1VU

Documents and manuals

Veris H6810-100A-1VU Documents

Overview

Details for H6810-100A-1VU

CT | Split Core | Instrument Grade | 1.2in x 1.3in ID | 100A to 1V


The H681x-V series of current transducers provide a standard voltage output.

  • High accuracy
  • UL2808 Listed



Specifications

Item Number H6810-100A-1VU
Brand Veris
Accuracy Meets or exceeds accuracy requirements specified in IEC 61869-2; Table 201; Class 1
Current Core Split Core
Current Measurement Range 0 - 100 A
Dimensions 4.12" (105mm) W x 3.25” (83 mm) L x 1.12” (28 mm) H
Environmental Conditions Humidity Range: 0 to 95% Non-Condensing; Storage Temperature: -40 to 158 °F
Frequency Rating 50 - 60 Hz
Mounting Split-Core
Operating Temperature 5 - 140 °F
Output Specifications 1 V
Product Type Current Transducer
Range H681X-V
Sensor Current Sensor (Hawkeye)
