H623-10 | Current Xducer,Split-Core,0-10A,0-10VDC | Veris

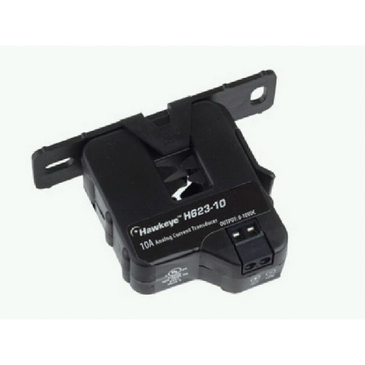

Hawkeye 0 to 10 A Input 0 to 10 VDC Output Analog Current Transducer, Split-Core, 0.7 x 1/2 in
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H623-10
Documents and manuals
Veris H623-10 Documents
Overview
Details for H623-10
Current Xducer,Split-Core,0-10A,0-10VDC
The Hawkeye 623-10 series provide accurate load trending information with a proportional 0 to 10 VDC output signal. slide-switch selection for easy field adjustment - no need for jumpers.
- Self-powered analog current transducer 0 to 10 VDC output
- Self-gripping, split-core design for fast retrofit installation, no need to remove conductor
- No jumpers on unit, reduces installation error
- No external power required for sensor
- Factory calibrated ranges for high resolution and installation ease
- Induced from monitored conductor sensor power
Specifications
Item Number | H623-10 |
Brand | Veris |
Application | Building Automation Systems |
Current Measurement Accuracy | ±2% of F.S. above 1 A |
Current Measurement Range | 0 - 10 A |
Current Sensor type | Current Transducer; AC |
Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
Measurement Type | AC Current |
Model | H623-10 |
Monitored Frequency Range | 50 - 60 Hz |
Monitored Wire Size | 0.5" (12 mm) |
Mounting | Split Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
Output Specifications | 0 - 10 VDC |
Outputs | Analog output |
Product Certification | UL | CE |
Product Type | Sensor |
Range | HX22 Series |
Relay Coil Voltage | None |
Relay Contact Ratings | None |
Relay Poles/Throw | None |
Warranty | 5 years |
