Hawkeye 1.5 to 150 A Auto Calibration VFD Current Switch, Split-Core
Documents and manuals
Veris H614 Documents
Overview
Details for H614
CS | VFD | Mini SC | Load Control | Sensor
Description

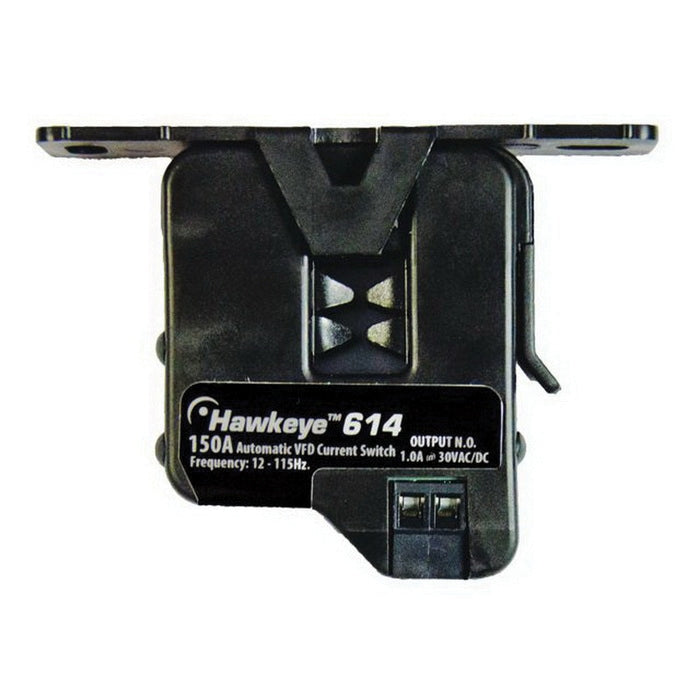

The Hawkeye H614 is a microprocessor based, self-learning, selfcalibrating current-sensitive switching device designed for use with VFD systems. At initial power-up, the H614 automatically learns the average current on the line with no action required by the installer. Once a current is learned, the switch monitors for changes in current greater than ±20% of the learned load. When calibrated for a given VFD system, the H614 is tolerant of gradual drifts in frequency due to expected conditions, such as an accumulation of debris in a filter, while still detecting a sudden drop due to a potential abnormal system condition (e.g., belt loss or other mechanical failure).
APPLICATIONS
VFD Systems:
- Detecting belt loss, coupling shear, and mechanical failure
- HVAC fan/blower motor failure
- Can detect unauthorized duct access
Specifications
Item Number | H614 |
Brand | Veris |
Application | Building Automation Systems |
Current Core | Split Core |
Current Measurement Range | 1.5 - 150 A |
Current Sensor type | Current Switch; VFD; Automatic |
Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
Measurement Type | AC Current | VFD |
Model | H614 |
Monitored Frequency Range | 12 - 115 Hz |
Monitored Wire Size | 0.5" (12 mm) |
Mounting | Split Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
Output Specifications | N.O. 1 A @ 30 VAC/DC |
Outputs | Switch output |
Product Certification | UL | CE |
Product Type | Sensor |
Range | VFD Series |
Relay Coil Voltage | None |
Relay Contact Ratings | None |
Relay Poles/Throw | None |
Reset | Manual |
Sensor | Current Switch (Hawkeye) |
Setpoint | Automatic Calibration |
Warranty | 5 years |
