H606 | Mini Split Core | Adj. | Range: 1.25-50AAC | Output: N.C. | 0.1A | Veris

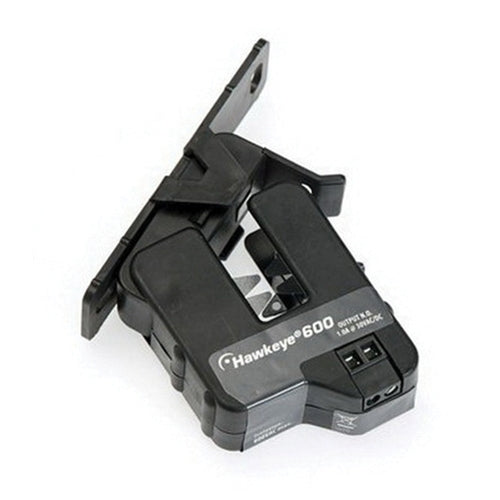

Hawkeye 1.25 to 50 A Adjustable Trip Point Current Switch, Split-Core
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H606
Documents and manuals
Veris H606 Documents
Overview
Details for H606
Mini Split Core | Adj. | Range: 1.25-50AAC | Output: N.C. | 0.1A
Description
Hawkeye x06 Series solid- and split-core current switches provide accurate, reliable, and maintenance-free fan and pump status indication where an NC output is needed.
APPLICATIONS
- Monitoring fans, pumps, motors, and other electrical loads for proper operation
- Detecting belt loss and motor failure...ideal for fan and pump status
- Verifying lighting circuit loads
- Monitoring critical motors (compressor, fuel, etc.)
- Monitoring industrial process equipment status (OEM)
Specifications
Item Number | H606 |
Brand | Veris |
Application | Building Automation Systems |
Current Core | Split Core |
Current Measurement Range | 1.25 - 50 A |
Current Sensor type | Current Switch; AC |
Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
Measurement Type | AC Current |
Model | H606 |
Monitored Frequency Range | 50 - 60 Hz |
Monitored Wire Size | 0.5" (12 mm) |
Mounting | Split Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
Output Specifications | N.C. 0.1A @ 30 VDC |
Outputs | Switch output |
Product Certification | UL | CE |
Product Type | Sensor |
Range | HX06 Series |
Relay Coil Voltage | None |
Relay Contact Ratings | None |
Relay Poles/Throw | None |
Sensor | Current Switch (Hawkeye) |
Setpoint | Adjustable |
Warranty | 5 years |
