H221SP | CT | SplitCore | 0-300A | 4-20mA | Cal Span | Veris

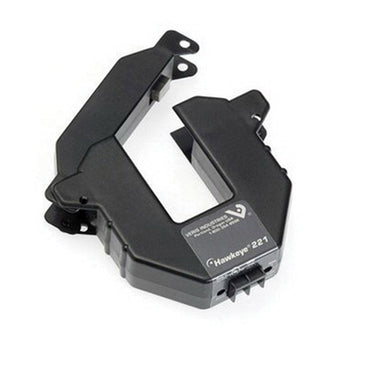

Hawkeye 100 to 300 A Input 4 to 20 mA DC Output High Analog Current Transducer, Split-Core, 1.6 x 1.4 in
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H221SP
Documents and manuals
Veris H221SP Documents
Overview
Details for H221SP
CT | SplitCore | 0-300A | 4-20mA | Cal Span
Description
Hawkeye x21/x21SP analog current transducers provide reliable load trending information for large motor loads (up to 2400A), with a proportional 4-20mA signal. Three devices are available, each with a different amperage range. The Hx21 versions include a span potentiometer that allows each sensor to be calibrated for maximum resolution. The Hx21SP versions are factory-calibrated at a range specified by the customer.
APPLICATIONS
- Load trending of large motors and other loads up to 2400 Amps
- Monitor critical motors (compressor, fuel, etc.)
Specifications
Item Number | H221SP |
Brand | Veris |
Application | Building Automation Systems |
Current Core | Split Core |
Current Measurement Accuracy | ±2% of F.S. above 30 A |
Current Measurement Range | 0 - 300 A |
Current Sensor type | Current Transducer; AC |
Electrical Wiring Size | 22 - 12 AWG (0.33 - 3.3 mm²) |
Measurement Type | AC Current |
Model | H221SP |
Monitored Frequency Range | 50 - 60 Hz |
Monitored Wire Size | 1.4" (35 mm) |
Mounting | Split Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
Output Specifications | 4 - 20 mA |
Outputs | Analog output |
Product Certification | UL | CE |
Product Type | Sensor |
Range | High Current Series |
Relay Coil Voltage | None |
Relay Contact Ratings | None |
Relay Poles/Throw | None |
Sensor | Current Sensor (Hawkeye) |
Warranty | 5 years |
