H11D | Current Switch | Split Core | Auto Set | LCD Display | Veris
Hawkeye 2.5 to 200 A at 60 Hz 3 to 200 A at 50 Hz Auto Calibration with LCD Display Current Switch, Split-Core

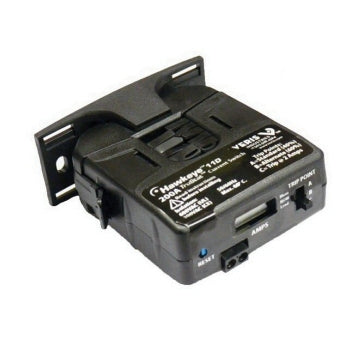

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H11D
Documents and manuals
Veris H11D Documents
Overview
Details for H11D
Current Switch | Split Core | Auto Set | LCD Display
Description
The Hawkeye TruStat H11D is a microprocessor based, self-learning, self-calibrating current switch. It is designed for user ease, providing calibration-free status for both under and overcurrent, an LCD display, and slide-switch selectable trip point limits. At initial power-up, the H11D automatically learns the average current on the line with no action required by the installer. Once a current is learned, the switch monitors for changes in current greater than the selected range.
APPLICATIONS
- HVAC fans, pumps, and blowers
- Monitoring status of industrial process equipment
Specifications
Item Number | H11D |
Brand | Veris |
Alarm target Ranges | ±40% | ±60% of learned |
Application | Building Automation Systems |
Current Core | Split Core |
Current Measurement Accuracy | ±2% of F.S. |
Current Measurement Range | 2.5 - 200 A |
Current Sensor type | Current Switch; AC; Automatic |
Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
Measurement Type | AC Current |
Model | H11D |
Monitored Frequency Range | 50 - 60 Hz |
Monitored Wire Size | 0.8" (21 mm) |
Mounting | Split Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
Output Specifications | N.O. 1 A @ 30 VAC/DC |
Outputs | Switch output |
Product Certification | UL | CE |
Product Type | Sensor |
Range | H11 Series |
Relay Coil Voltage | None |
Relay Contact Ratings | None |
Relay Poles/Throw | None |
Reset | Manual |
Sensor | Current Switch (Hawkeye) |
Setpoint | Automatic Calibration |
Warranty | 5 years |
