4 to 20 mA/0 to 10 VDC Output Electropneumatic Transducer, EP Cover Plate
Documents and manuals
Veris EP3330S2 Documents
Overview
Details for EP3330S2
EP | Tri-S | PWM | Alg in | Alg out | Press loss | man mode | Cover
Description

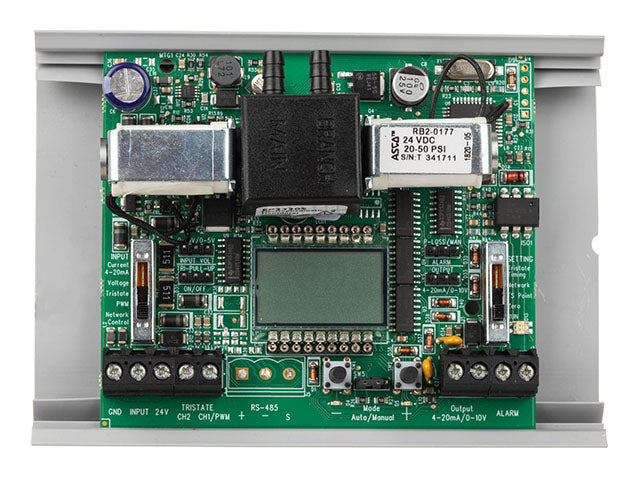

The EP3 Series combines a microcontroller with high performance, low power coil poppet valve technology to create a system with unparalleled accuracy and proven reliability. The poppet valves used in the EP3 consume no air, eliminating unnecessary air losses in the system and allowing for efficient, long-term operation. The EP3 permits versatility, since all models feature manual override and a tri-state control option. The LCD provides easy visibility and the LED indicators provide visual status of valve operation in manual or automatic mode. All models come with SnapTrack housing and optional covers are available.
APPLICATIONS
- Hospitals
- Schools
- Pneumatic dampers/actuators
Specifications
| Item Number | EP3330S2 |
| Brand | Veris |
| Application Zone | Plant Room |
| Application | Pneumatic Actuated Dampers | Pneumatic Actuators |
| Brand | Veris |
| Dimension Depth | 1.8" (46 mm) |
| Dimension Height | 3.5" (89 mm) |
| Dimension Width | 4.9" (125 mm) |
| Direction | Unidirectional |
| Display Type | None |
| Electrical Wiring | 3-wires |
| Fail Safe | None |
| Fitting Material | Plastic |
| Fitting Size | 0.18" (4.3 mm) |
| Fitting Type | Male |
| Input Specifications | 4 - 20 mA | 0 - 5 V | 0 - 10 V | Tri-State | PWM |
| LED Indicator Type | Red and Green |
| Measurement Type | Electropneumatic Transducers |
| Medium | Dry Air | Inert Gas |
| Model | EP3330S2 |
| Mounting | Panel |
| Operating Humidity | 10 - 90% RH; non-condensing |
| Operating Temperature | 41 - 140 °F (5 - 60 °C) |
| Output Specifications | 4 - 20 mA | 0 - 10 V |
| Pressure Measurement Accuracy | ±1% of F.S. |
| Pressure Measurement Range | 3 - 15 psi (0.2 - 1 bar) | 0 - 20 psi (0 - 1.35 bar) |
| Pressure Output Signal | 0-10 VDC |
| Pressure Output Signal | 0-5 VDC |
| Pressure Output Signal | 4-20 mA |
| Pressure Range | 0-20 psig |
| Pressure Range | 3-15 psig |
| Pressure Sensor Type | Guage |
| Pressure Sensor w LCD | Yes |
| Product Certification | CE |
| Product Type | Sensor |
| Range | EP3 |
| Sensor | Pressure |
| Standards EMC | EN 61000-6-1 |
| Supply Voltage AC Range | 20 - 30 VAC |
| Supply Voltage DC Range | 22 - 30 VDC |
| Warranty | 5 years |
