EP3030S2 | EP3 | No Anlg Out | Alarm | No Failsafe | Cover | Veris

0 to 25 psi Output Electropneumatic Transducer, EP Cover Plate

Veris | EP3030S2

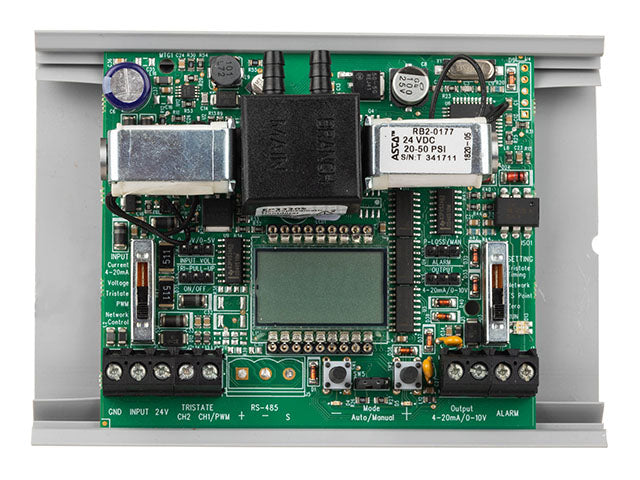

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EP3030S2

Documents and manuals

Overview

Details for EP3030S2

EP3 | No Anlg Out | Alarm | No Failsafe | Cover

The EP3 series combines a microcontroller with high performance, low power coil poppet valve technology to create a system with unparalleled accuracy and proven reliability. The poppet valves used in the EP3 consume no air, eliminating unnecessary air losses in the system and allowing for efficient, long-term operation. The EP3 permits versatility, since all models feature manual override and a tri-state control option. The LCD provides easy visibility and the LED indicators provide visual status of valve operation in manual or automatic mode. All models come with SnapTrack housing.

  • Poppet valve technology for quiet operation
  • Manual override with set and hold feature, great for commissioning leaky systems
  • Pressure loss alarm provides a contact closure if the EP3 is unable to achieve the desired output within a fixed length of time
  • EP cover plate
  • Media connection - clean, dry air, or inert gas, do not use with oxygen service

Specifications

Item Number EP3030S2
Brand Veris
Application Zone Plant Room
Application Pneumatic Actuated Dampers | Pneumatic Actuators
Brand Veris
Dimension Depth 1.8" (46 mm)
Dimension Height 3.5" (89 mm)
Dimension Width 4.9" (125 mm)
Direction Unidirectional
Display Type None
Electrical Wiring 3-wires
Fail Safe None
Fitting Material Plastic
Fitting Size 0.18" (4.3 mm)
Fitting Type Male
Input Specifications 4 - 20 mA | 0 - 5 V | 0 - 10 V | Tri-State | PWM
LED Indicator Type Red and Green
Measurement Type Electropneumatic Transducers
Medium Dry Air | Inert Gas
Model EP3030S2
Mounting Panel
Operating Humidity 10 - 90% RH; non-condensing
Operating Temperature 41 - 140 °F (5 - 60 °C)
Output Specifications 4 - 20 mA | 0 - 10 V
Pressure Measurement Accuracy ±1% of F.S.
Pressure Measurement Range 3 - 15 psi (0.2 - 1 bar) | 0 - 20 psi (0 - 1.35 bar)
Pressure Output Signal 0-10 VDC
Pressure Output Signal 0-5 VDC
Pressure Output Signal 4-20 mA
Pressure Range 0-20 psig
Pressure Range 3-15 psig
Pressure Sensor Type Guage
Pressure Sensor w LCD Yes
Product Certification CE
Product Type Sensor
Range EP3
Sensor Pressure
Standards EMC EN 61000-6-1
Supply Voltage AC Range 20 - 30 VAC
Supply Voltage DC Range 22 - 30 VDC
Warranty 5 years
