Documents: EP2110S2
EP2110S2 | EP | Anlg In | 3-15/0-20psi | Alarm Relay | Cvr | Veris
3 to 15 or 0 to 20 psig Output Alarm Relay Electropneumatic Transducer, EP Cover Plate

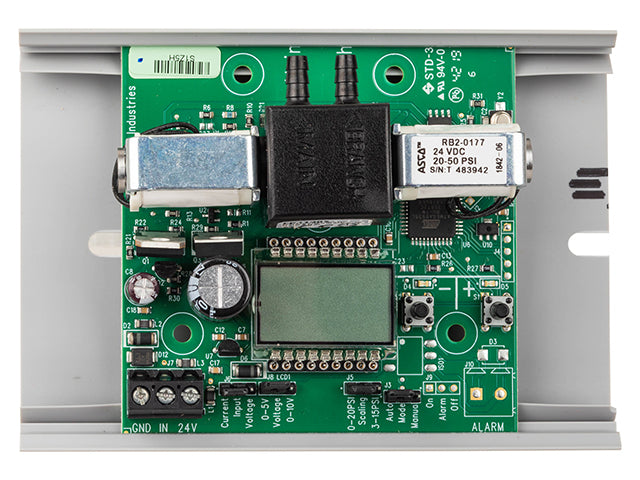

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EP2110S2
Overview Details for EP2110S2
EP | Anlg In | 3-15/0-20psi | Alarm Relay | Cvr
The EP2 series electro pneumatic pressure transducer uses microcontrolled poppet valve technology for highly accurate pressure sensing in multiple applications. The poppet valves consume no air, eliminating unnecessary air losses in the system and allowing for stable and reliable operation. The EP2 comes installed on standard SnapTrack. An LCD display and LED indicators make it easy to read system status at a glance.
- Field-selectable 4 to 20 mA/0 to 5 V/0 to 10 VDC input for application flexibility
- Poppet valve technology for quiet operation
- Manual override with set and hold feature, great for commissioning leaky systems
- Fail-safe vent solenoids bleed branch pressure on power failure for added safety
- Media connection - clean, dry air, or inert gas, do not use with oxygen service
- Pressure indication - electronic, 3-1/2 digit LCD
Specifications
Item Number | EP2110S2 |
Brand | Veris |
Application Zone | Plant Room |
Application | Pneumatic Actuated Dampers | Pneumatic Actuators |
Brand | Veris |
Dimension Depth | 1.8" (46 mm) |
Dimension Height | 3.5" (89 mm) |
Dimension Width | 3.3" (84 mm) |
Direction | Unidirectional |
Display Type | None |
Electrical Wiring | 3-wires |
Fail Safe | Vent on power fail |
Fitting Material | Brass |
Fitting Size | 0.18" (4.3 mm) |
Fitting Type | Male |
Input Specifications | 4 - 20 mA | 0 - 5 V | 0 - 10 V |
LED Indicator Type | Red and Green |
Measurement Type | Electropneumatic Transducers |
Medium | Dry Air | Inert Gas |
Model | EP2101S |
Mounting | Panel |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 25 - 140 °F (-4 - 60 °C) |
Output Specifications | None |
Pressure Measurement Accuracy | ±1% of F.S. |
Pressure Measurement Range | 3 - 15 psi (0.2 - 1 bar) | 0 - 20 psi (0 - 1.35 bar) |
Pressure Output Signal | 0-10 VDC |
Pressure Output Signal | 0-5 VDC |
Pressure Output Signal | 4-20 mA |
Pressure Range | 0-20 psig |
Pressure Range | 3-15 psig |
Pressure Sensor Type | Guage |
Pressure Sensor w LCD | Yes |
Product Type | Sensor |
Range | EP2 |
Sensor | Pressure |
Standards EMC | EN 61000-6-3:2007 | A1:2011 Class B | EN 61000-6-1:2007 |
Supply Voltage AC Nominal | 24 VAC |
Supply Voltage AC Range | 24 - 30 VAC |
Supply Voltage DC Nominal | 24 VDC |
Warranty | 5 years |
