EA20BB010 | Current Xdcr | Split | 100A | 1kVDC | Unipolar | Veris

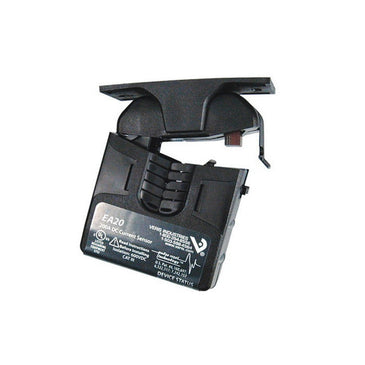

0 to 100 A DC Input 4 to 20 mA Unidirectional Output Direct Current Transducer, Split-Core, 1.1 x 0.8 in
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EA20BB010
Documents and manuals
Veris EA20BB010 Documents
Overview
Details for EA20BB010
Current Xdcr | Split | 100A | 1kVDC | Unipolar
Description
Hawkeye DC Transducers provide accurate load level monitoring of DC loads. The H971 and EA20 use Pulse Reset Technology™ with field proven circuitry to provide a superior solution for DC applications with minimal risk of permanent magnetization, providing longer life and better accuracy. The EA20 and the H971 have 4-20mA output only. The EA20 and the H971 have 4-20mA output only. The H971 also offers bi-directional sensing capability and a user-adjustable span to allow greater application flexibility.
APPLICATIONS
- Battery chargers
- Motor armature current
- Motor field current
- Automotive loads
- Marine equipment
- Solar energy applications
- Telecom
- Electroplating
Specifications
Item Number | EA20BB010 |
Brand | Veris |
Application | Building Automation Systems |
Current Core | Split Core |
Current Measurement Accuracy | ±0.5 A |
Current Measurement Range | 0 - 100 A |
Current Sensor type | Current Transducer; DC |
Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
Measurement Type | DC Current |
Model | EA20BB010 |
Monitored Wire Size | 0.8" (21 mm) |
Mounting | Split Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | -22 - 140 °F (-30 - 60 °C) |
Output Specifications | 4 - 20 mA |
Outputs | Analog output |
Product Certification | UL | CE |
Product Type | Sensor |
Range | DC Series |
Relay Coil Voltage | None |
Relay Contact Ratings | None |
Relay Poles/Throw | None |
Sensor | Current Sensor |
Warranty | 5 years |
