E683C502 | CT,Rogowski,9.8",250mm,L,600V,5kA | Veris

600 V 5 kA 9 in Flexible Core AC Current Transducer

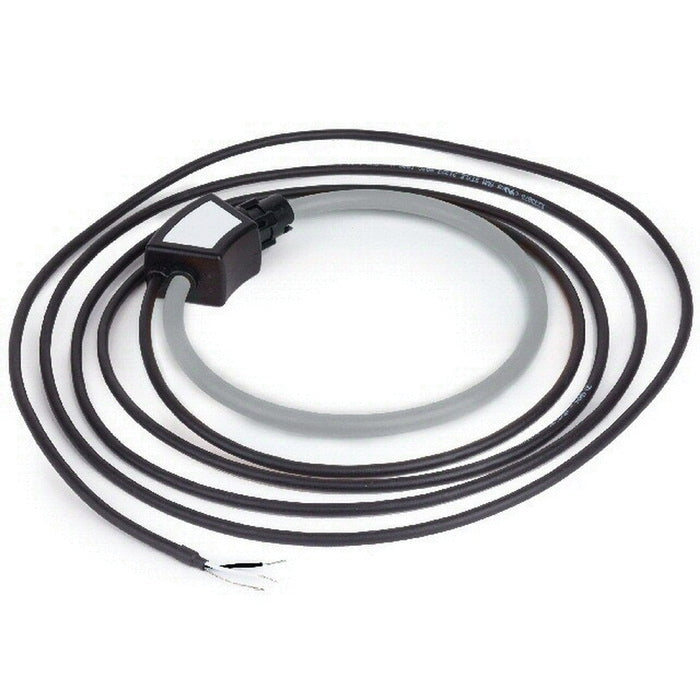

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to E683C502

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris E683C502 Documents

Datasheet Installation Guide More Info

Overview

Details for E683C502

CT,Rogowski,9.8",250mm,L,600V,5kA

The E683x Series of Rogowski flexible rope style current transducers (CTs) provide secondary AC voltage proportional to the primary (sensed) current. For use with E5xxxA and E2x Series power meters, the E683x Series CTs provide a cost-effective means to transform electrical service amperages to a voltage compatible with monitoring equipment. The flexible core makes it easy to fit in tight enclosures.

Specifications

Item Number	E683C502
Brand	Veris
Accuracy	+/-1%
Current Measurement Range	50 - 5000 A
Dimensions	0.33" (8.3 mm) W x 9" (250 mm) L x 3.13" (80 mm) ID
Environmental Conditions	Storage Temperature: -40 to 158 °F
Frequency Rating	50 - 60 Hz
Mounting	Split-Core Rogowski
Operating Temperature	5 - 140 °F
Output Specifications	Rogowski
Product Type	AC Current Transducer
Range	E683X
