Overview
Details for E51H5A
Pwr Mtr | 4Q | BACnet | Logging | 2 Pulse | RopeCT

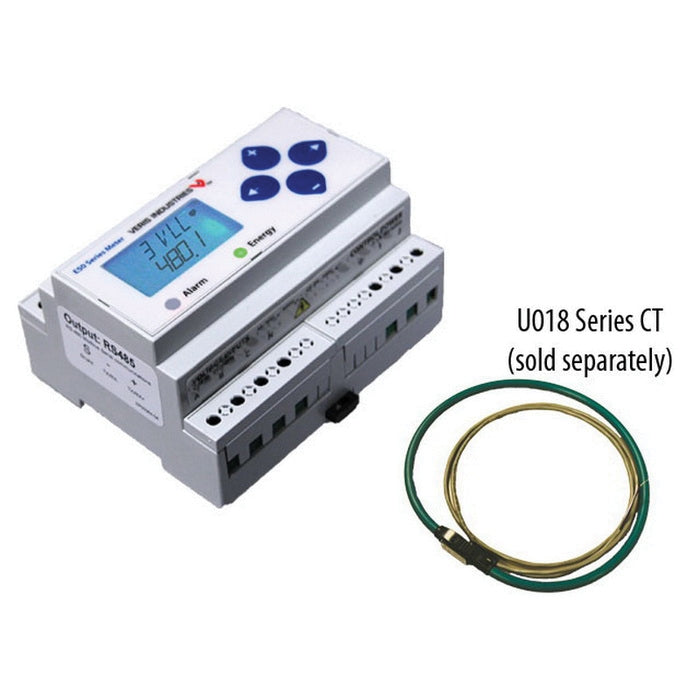

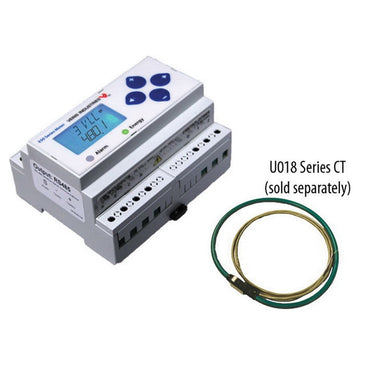

The E51H5A DIN rail power meters provide a solution for measuring energy data with a single device. Inputs include control power, CT and 3-phase voltage. Models support BACnet MS/TP protocol. The E51H5A has data logging capability and two pulse contact inputs. The LCD screen on the faceplate allows instant output viewing. The E51 meters are capable of bidirectional metering. Power is monitored in both directions (upstream and downstream from the meter). The meter is housed in a plastic enclosure suitable for installation on T35 DIN rail according to EN 50022. The E51 can be mounted either on a DIN rail or in a panel.
- Full data set output
- RS-485 serial (BACnet MS/TP protocol) output
- 2 pulse input: solid-state or mechanical contacts (current less than 1 mA)
- Mounting location - not suitable for wet locations, for indoor use only
Specifications
| Item Number | E51H5A |
| Brand | Veris |
| Accuracy | +/- 0.2% |
| Communication | BACnet (MS/TP) |
| Dimensions | 3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H |
| Display Type | LCD |
| Environmental Conditions | Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m |
| Frequency Rating | 50 - 60 Hz |
| Metering Product Family | E50 Power Meter |
| Monitored Voltage Range | 90 - 600 VAC |
| Mounting | Din-Rail |
| Operating Temperature | -22 - 158 °F |
| Output Specifications | BACnet MS/TP |
| Power Monitoring | E5x Series Power and Energy Meters |
| Product Type | Bi-Directional Compact Power and Energy Meter |
| Range | E51 |
