E51H2A | Pwr Mtr | 4Q | BACnet | 1Pulse In | Alarm | RopeCT | Veris

Alarm/BACnet MS/TP Output 1-Pulse Input Bi-Directional Compact Power and Energy Meter

Brand: VerisSKU: E51H2A

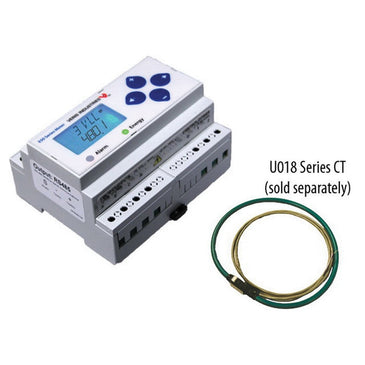

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to E51H2A

Jump to: Overview & Specifications Reviews

Overview Details for E51H2A

The E51H2A DIN rail power meters provide a solution for measuring energy data with a single device. Inputs include control power, CT and 3-phase voltage. Models support BACnet MS/TP protocol. The E51H2A has one pulse contact input and a phase loss alarm output. The LCD screen on the faceplate allows instant output viewing. The E51 meters are capable of bidirectional metering. Power is monitored in both directions (upstream and downstream from the meter). The meter is housed in a plastic enclosure suitable for installation on T35 DIN rail according to EN 50022. The E51 can be mounted either on a DIN rail or in a panel.

Alarm output (normally close)
Full data set output
RS-485 serial (BACnet MS/TP protocol) output
1 pulse input: solid-state or mechanical contacts (current less than 1 mA)

Specifications

Item Number	E51H2A
Brand	Veris
Accuracy	+/- 0.2%
Communication	BACnet (MS/TP)
Dimensions	3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H
Display Type	LCD
Environmental Conditions	Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m
Frequency Rating	50 - 60 Hz
Metering Product Family	E50 Power Meter
Monitored Voltage Range	90 - 600 VAC
Mounting	Din-Rail
Operating Temperature	-22 - 158 °F
Output Specifications	Alarm: 30 VAC/VDC; 100 mA Maximum (NC); BACnet MS/TP
Power Monitoring	E5x Series Power and Energy Meters
Product Type	Bi-Directional Compact Power and Energy Meter
Range	E51
