E51C2A | Pwr Mtr | 4Q | Modbus | RopeCT | Veris

Pulse/Alarm Output Full Data Set Bi-Directional Compact Power and Energy Meter

Brand: VerisSKU: E51C2A

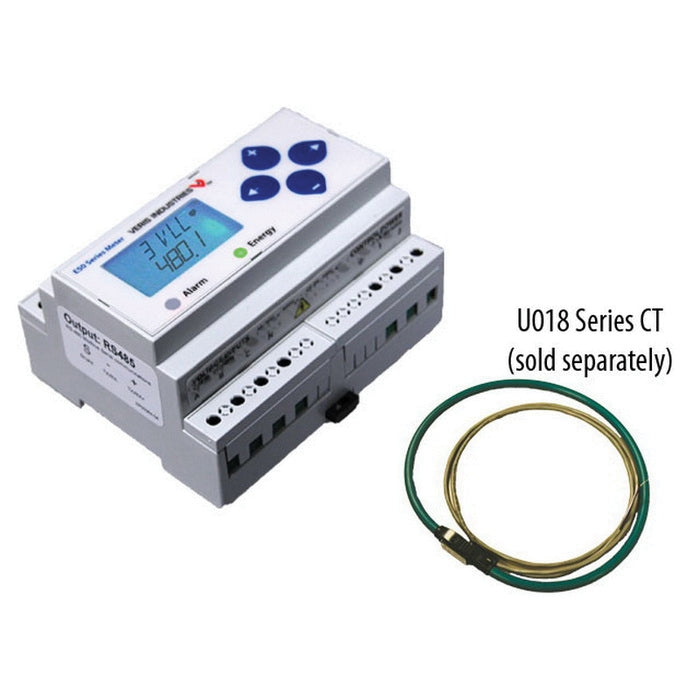

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to E51C2A

Jump to: Overview & Specifications Reviews

Overview Details for E51C2A

The E51CxA DIN rail power meter provides a solution for measuring energy data with a single device. Inputs include Control Power, CT's and 3-phase voltage. The E51CxA supports multiple output options, including solid state relay contacts, Modbus (without data logging) and pulse. The LCD screen on the faceplate allows instant output viewing. These meters include built-in CT integrators and CT power supplies. The E50CxA works only with Veris E683 series rope style CT's. The E51 meter is capable of bidirectional metering. Power is monitored in both directions (upstream and downstream from the meter). The meter is housed in a plastic enclosure suitable for installation on T35 DIN rail according to EN 50022. The E51 can be mounted either on a DIN rail or in a panel.

Pulse output (normally open)
Alarm output (normally close)
RS-485 serial (Modbus RTU protocol), 2-wire output
Mounting location - not suitable for wet locations, for indoor use only

Specifications

Item Number	E51C2A
Brand	Veris
Accuracy	+/- 0.2%
Communication	ModBus (RTU)
Dimensions	3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H
Display Type	LCD
Environmental Conditions	Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m
Frequency Rating	50 - 60 Hz
Metering Product Family	E50 Power Meter
Monitored Voltage Range	90 - 600 VAC
Mounting	Din-Rail
Operating Temperature	-22 - 158 °F
Output Specifications	Pulse: 30 VAC/VDC; 100 mA Maximum (NO); Alarm: 30 VAC/VDC; 100 mA Maximum (NC)
Power Monitoring	E5x Series Power and Energy Meters
Product Type	Bi-Directional Compact Power and Energy Meter
Range	E51
