Documents: E51C2

Datasheet More Info

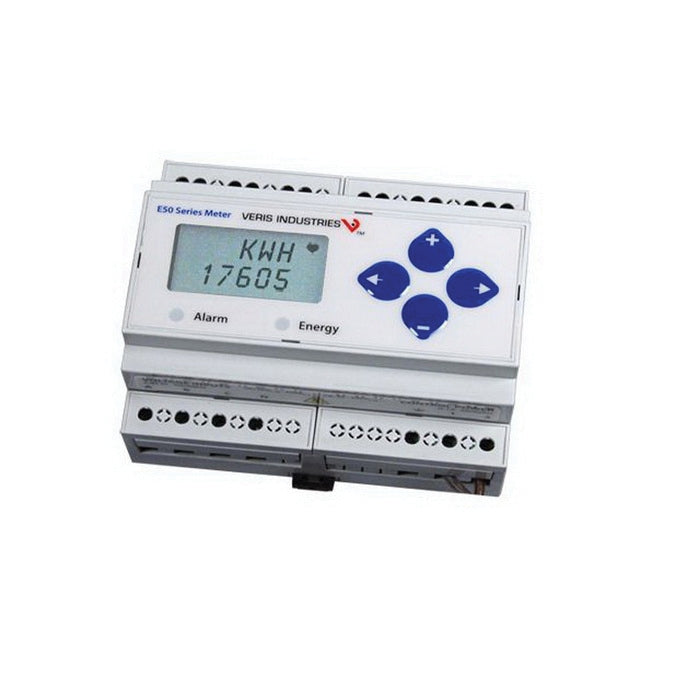

E51C2 | Bi-Directional DIN Energy Meter | Modbus | Pulse Out | Veris

Alarm/Pulse/Modbus RTU Output Bi-Directional Enhanced Power and Energy Meter

Brand: VerisSKU: E51C2

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to E51C2

Jump to: Overview & Specifications Reviews

Overview Details for E51C2

The E5x series DIN rail meter combines exceptional performance and easy installation to deliver a cost-effective solution for power monitoring applications. The E5x can be installed on standard DIN rail or surface mounted as needed. The Modbus output model offer added flexibility for system integration. Combinations of serial communication, pulse output and phase alarms are provided to suit a wide variety of applications. The E51 models add a bi-directional monitoring feature designed expressly for renewable energy applications, allowing measurement of power imported from the utility grid as well as power exported from the renewable energy source (e.g. solar panels). In this way, a facility administrator can track all energy data, ensuring accuracy in billing and crediting. They are also useful for monitoring loads that use regenerative braking.

High reliability
Easy installation
Wide CT compatibility - compatible with CTs from 5 to 32000 A
Multiple applications - real energy output and phase loss alarm output

Specifications

Item Number	E51C2
Brand	Veris
Accuracy	+/- 0.2%
Communication	ModBus (RTU)
Dimensions	3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H
Display Type	LCD
Environmental Conditions	Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m
Frequency Rating	50 - 60 Hz
Metering Product Family	E50 Power Meter
Monitored Voltage Range	90 - 600 VAC
Mounting	Din-Rail
Operating Temperature	-22 - 158 °F
Output Specifications	30 VAC/VDC; 100 mA Maximum Alarm Output (NC) and Pulse Output (NO); RS-485 2-Wire Modbus RTU
Power Monitoring	E5x Series Power and Energy Meters
Product Type	Enhanced Power and Energy Meter
Range	E51
