Alarm Output 1-Pulse Input Compact Power and Energy Meter with BACnet MS/TP Support
Overview Details for E50H2A

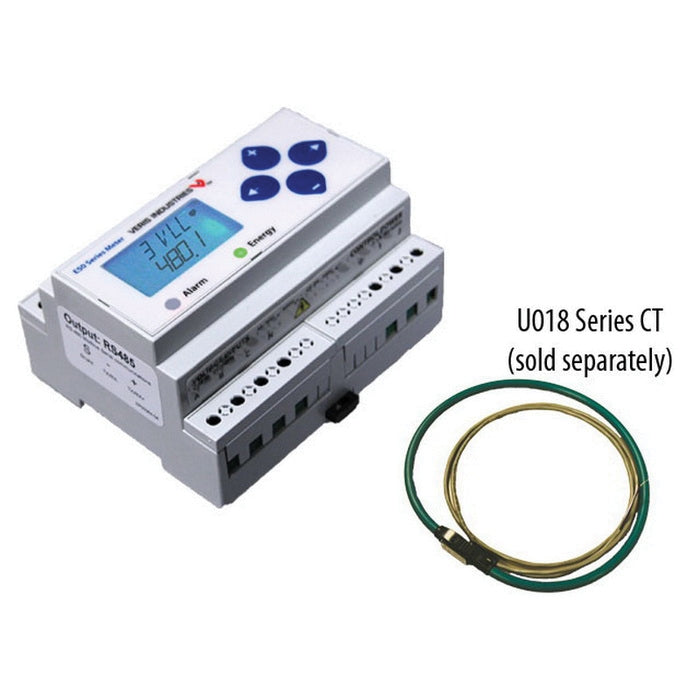

The E50H2A DIN rail power meters provide a solution for measuring energy data with a single device. Inputs include control power, CT and 3-phase voltage. Models support BACnet MS/TP protocol. The E50H2A has one pulse contact input and a phase loss alarm output. The LCD screen on the faceplate allows instant output viewing. These meters include built-in CT integrators and CT power supplies. The E50H2A work only with Veris E683 series rope style CTs. The meter is housed in a plastic enclosure suitable for installation on T35 DIN rail according to EN 50022. It can be mounted with any orientation over the entire ambient temperature range, either on a DIN rail or in a panel. The meters are not sensitive to CT orientation, reducing installation errors.
- Alarm output (normally close)
- Full data set output
- 1 pulse input: solid-state or mechanical contacts (current less than 1 mA)
- Mounting location - not suitable for wet locations, for indoor use only
Specifications
Item Number | E50H2A |
Brand | Veris |
Accuracy | +/- 0.2% |
Communication | BACnet (MS/TP) |
Dimensions | 3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H |
Display Type | LCD |
Environmental Conditions | Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m |
Frequency Rating | 50 - 60 Hz |
Metering Product Family | E50 Power Meter |
Monitored Voltage Range | 90 - 600 VAC |
Mounting | Din-Rail |
Operating Temperature | -22 - 158 °F |
Output Specifications | Alarm: 30 VAC/VDC; 100 mA Maximum (NC) |
Power Monitoring | E5x Series Power and Energy Meters |
Product Type | Compact Power and Energy Meter with BACnet MS/TP Support |
Range | E50 |
