E50H2 | DIN Energy Meter | BACnet MS/TP | Pulse In & Alarm | Veris (OBSOLETE)

RS-485 2-Wire BACnet MS/TP Output 1-Pulse Input Enhanced Power and Energy Meter

Brand: VerisSKU: E50H2

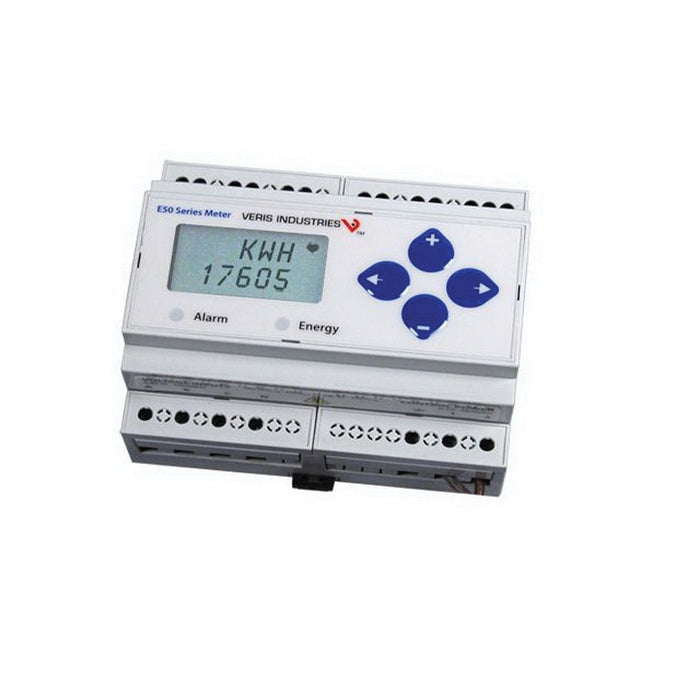

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to E50H2

Jump to: Overview & Specifications Reviews Alternatives

Overview Details for E50H2

DISCONTINUED AND REPLACED WITH METSEEM3561

The E5x series DIN rail meter combines exceptional performance and easy installation to deliver a cost-effective solution for power monitoring applications. The E5x can be installed on standard DIN rail or surface mounted as needed. The BACnet output model offer added flexibility for system integration. Combinations of serial communication, pulse output and phase alarms are provided to suit a wide variety of applications. Additional pulse inputs on E5xHx provide an easy way to incorporate simple flow sensors to track gas, water, steam, or other energy forms using a BACnet or LON system. In this way, a facility administrator can track all energy data, ensuring accuracy in billing and crediting. They are also useful for monitoring loads that use regenerative braking.

High reliability
Easy installation
Wide CT compatibility - compatible with CTs from 5 to 32000 A
Alarm output (normally close)

Specifications

Item Number	E50H2
Brand	Veris
Accuracy	+/- 0.2%
Communication	BACnet (MS/TP)
Dimensions	3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H
Display Type	LCD
Environmental Conditions	Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m
Frequency Rating	50 - 60 Hz
Metering Product Family	E50 Power Meter
Monitored Voltage Range	90 - 600 VAC
Mounting	Din-Rail
Operating Temperature	-22 - 158 °F
Output Specifications	RS-485 2-Wire BACnet MS/TP
Power Monitoring	E5x Series Power and Energy Meters
Product Type	Enhanced Power and Energy Meter
Range	E50
