E50C3A | Pwr Mtr | DIN | FDS | Logging | Modbus | U018 CTs | Veris

Pulse/Alarm Output Data Logging Compact Power and Energy Meter

Brand: VerisSKU: E50C3A

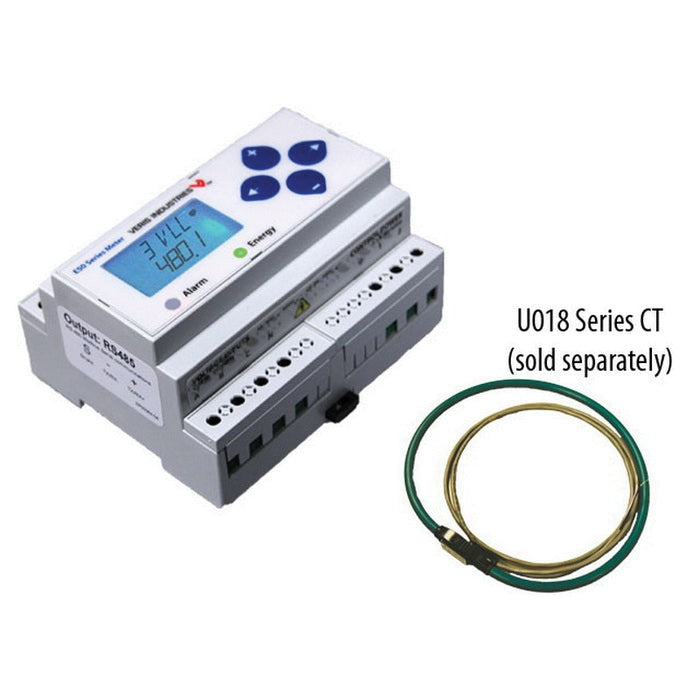

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to E50C3A

Jump to: Overview & Specifications Reviews

Overview Details for E50C3A

The E50CxA DIN rail power meter provides a solution for measuring energy data with a single device. Inputs include control power, CT and 3-phase voltage. The E50CxA supports multiple output options, including solid state relay contacts, Modbus (with data logging), and pulse. The LCD screen on the faceplate allows instant output viewing. These meters include built-in CT integrators and CT power supplies. The E50CxA work only with Veris E683 Series rope style CTs. The meter is housed in a plastic enclosure suitable for installation on T35 DIN rail according to EN 50022. The E50 can be mounted with any orientation over the entire ambient temperature range, either on a DIN rail or in a panel. The meter is not sensitive to CT orientation to reduce installation errors.

Pulse output (normally open)
Alarm output (normally close)
RS-485 serial (Modbus RTU protocol), 2-wire output
Mounting location - not suitable for wet locations, for indoor use only

Specifications

Item Number	E50C3A
Brand	Veris
Accuracy	+/- 0.2%
Communication	ModBus (RTU)
Dimensions	3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H
Display Type	LCD
Environmental Conditions	Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m
Frequency Rating	50 - 60 Hz
Metering Product Family	E50 Power Meter
Monitored Voltage Range	90 - 600 VAC
Mounting	Din-Rail
Operating Temperature	-22 - 158 °F
Output Specifications	Pulse: 30 VAC/VDC; 100 mA Maximum (NO); Alarm: 30 VAC/VDC; 100 mA Maximum (NC)
Power Monitoring	E5x Series Power and Energy Meters
Product Type	Compact Power and Energy Meter
Range	E50
