E50C3 | DIN Energy Meter | Modbus | Logging | Pulse Out | Veris
Alarm/Pulse/Modbus RTU Output Data Logging Enhanced Power and Energy Meter
Overview Details for E50C3

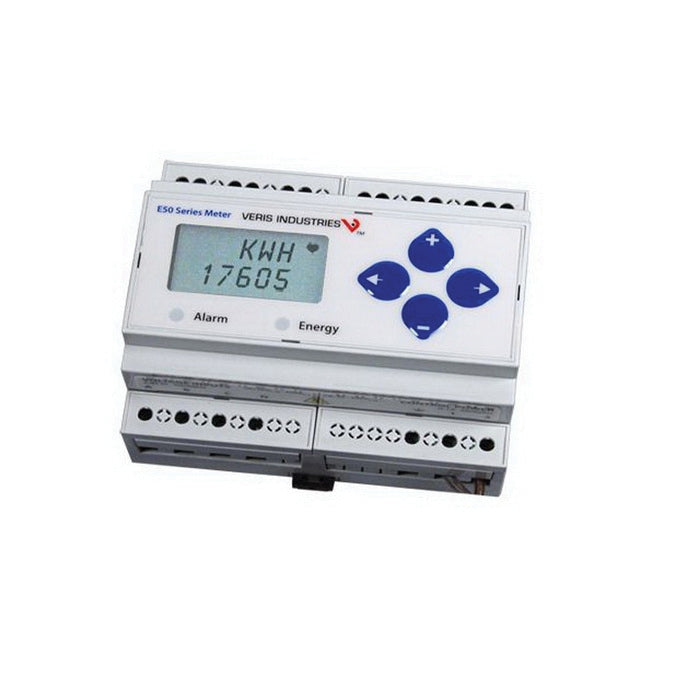

The Veris E50C3 is a high-accuracy, three-phase energy meter designed for precise power monitoring in demanding applications. Its compact DIN-rail mountable design, Modbus RTU communication protocol, data logging capabilities, and pulse output make it a versatile solution for industrial, commercial, and renewable energy settings. Accurately track energy consumption, optimize billing, and seamlessly integrate this reliable meter into your existing systems for enhanced energy management.
Applications:
- Building automation systems
- Renewable energy monitoring (solar, wind)
- Submetering in commercial and industrial buildings
- Industrial process monitoring
- Energy efficiency analysis and cost allocation
Key Features and Benefits:
- High accuracy for reliable energy measurement
- Modbus communication for seamless system integration
- Data logging for trend analysis and reporting
- Pulse output for external monitoring systems
- Flexible mounting options for ease of installation
The E5x series DIN rail meter combines exceptional performance and easy installation to deliver a cost-effective solution for power monitoring applications. The data logging capability of the E50C3 protects data in the event of a communications or power failure elsewhere in the system. The combinations of serial communication, pulse output and phase alarms are provided to suit a wide variety of applications. For example, a facility administrator can track all energy data, ensuring accuracy in billing and crediting. They are also useful for monitoring loads that use regenerative braking.
- Modbus output model offer added flexibility for system integration
- High reliability - ANSI C12.20 0.2% accuracy, IEC 62053-22 Class 0.2S
- Easy installation - DIN rail or screw mounting options
- Multiple applications - real energy output and phase loss alarm output
- Data logging - ensures long term data retrieval and safeguards during power failures
Specifications
Item Number | E50C3 |
Brand | Veris |
Accuracy | +/- 0.2% |
Communication | ModBus (RTU) |
Dimensions | 3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H |
Display Type | LCD |
Environmental Conditions | Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m |
Frequency Rating | 50 - 60 Hz |
Metering Product Family | E50 Power Meter |
Monitored Voltage Range | 90 - 600 VAC |
Mounting | Din-Rail |
Operating Temperature | -22 - 158 °F |
Output Specifications | 30 VAC/VDC; 100 mA Maximum Alarm Output (NC) and Pulse Output (NO); RS-485 2-Wire Modbus RTU |
Power Monitoring | E5x Series Power and Energy Meters |
Product Type | Enhanced Power and Energy Meter |
Range | E50 |
Product Type |
Three-Phase Energy Meter |
Accuracy |
±0.2% (typical) |
Voltage Input |
90-600 VAC (UL); 90-300V L-L (CE) |
Current Input |
5A - 32000A (requires compatible CTs) |
Communication |
Modbus RTU |
Outputs |
Pulse Output, Alarm Contacts |
Data Logging |
Yes |
Display |
Backlit LCD (specify size and resolution) |
Mounting |
DIN Rail, Screw Mount |
Operating Temp. |
-30 to 70°C (-22 to 158°F) |
Storage Temp. |
-40 to 85°C (-40 to 185°F) |
Humidity |
<95% RH, Non-Condensing |
