E50C2A | Pwr Mtr | DIN | FDS | Modbus | For U018 CTs | Veris
Pulse/Alarm Output Full Data Set Compact Power and Energy Meter

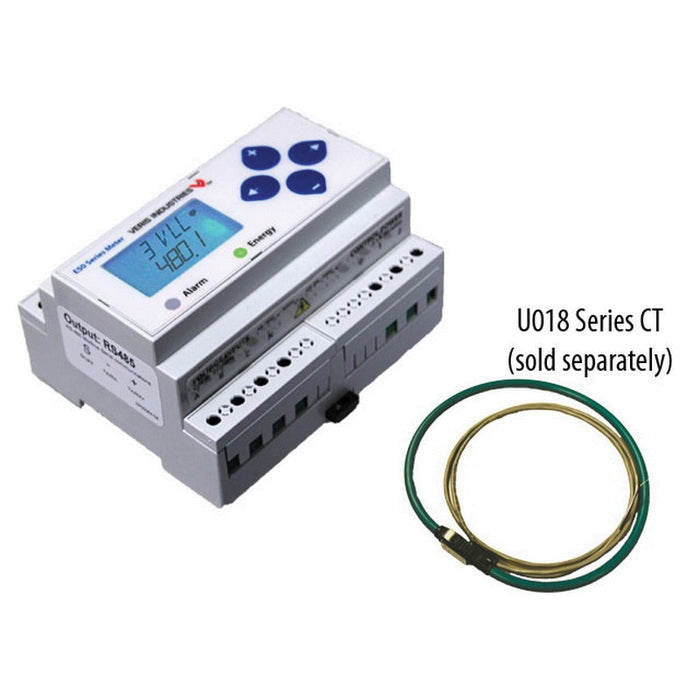

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to E50C2A
Documents and manuals
Veris E50C2A Documents
Overview
Details for E50C2A
Pwr Mtr | DIN | FDS | Modbus | For U018 CTs
FEATURES
- Integrator and power supply for the CTs are built into the meter... fewer devices to purchase and faster installation
- Designed to work exclusively with U018 Series rope CTs which offer 1% accuracy from 50A to 5000A...monitor a wide range of loads with breakers from 400A to 5000A
- Versatile Rope CTs allow convenient installation in tight spaces
- ANSI C12.20 0.5% accuracy, IEC 62053-22 Class 0.5S on all E5xxxA...great for cost allocation
- DIN rail or screw mounting options...easy installation
- Real energy output and phase loss alarm output on E50BxA and E5xCxA models...one device serves multiple applications
- 90-600VAC...application versatility with fewer models to stock
- Data logging capability (E5xC3A and E5xx5A)... ensures long term data retrieval and safeguards during power failures
- System integration via Modbus (E5xCxA), BACnet MS/TP (E5xHxA), or Lonmark-certified LON FT (E50FxA)...convenient compatibility with existing systems
- Native BACnet MS/TP support (no gateway) with serial rates up to 115.2 kbaud (E5xHxA)
- E51 models: Bi-directional metering (4-quadrant), an essential solution for solar and other renewable energy applications, measures Import, Export and net energy transfer
- CSI approved...eases submission process for California Solar Initiative
- E51CxA includes SunSpec compliant common and meter register blocks
Specifications
Item Number | E50C2A |
Brand | Veris |
Accuracy | +/- 0.2% |
Communication | ModBus (RTU) |
Dimensions | 3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H |
Display Type | LCD |
Environmental Conditions | Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m |
Frequency Rating | 50 - 60 Hz |
Metering Product Family | E50 Power Meter |
Monitored Voltage Range | 90 - 600 VAC |
Mounting | Din-Rail |
Operating Temperature | -22 - 158 °F |
Output Specifications | Pulse: 30 VAC/VDC; 100 mA Maximum (NO); Alarm: 30 VAC/VDC; 100 mA Maximum (NC) |
Power Monitoring | E5x Series Power and Energy Meters |
Product Type | Compact Power and Energy Meter |
Range | E50 |
