E50B1A | Pwr Mtr | DIN | Pulse Out Only | For U018CTs | Veris

Pulse Output Compact Power and Energy Meter

Brand: VerisSKU: E50B1A

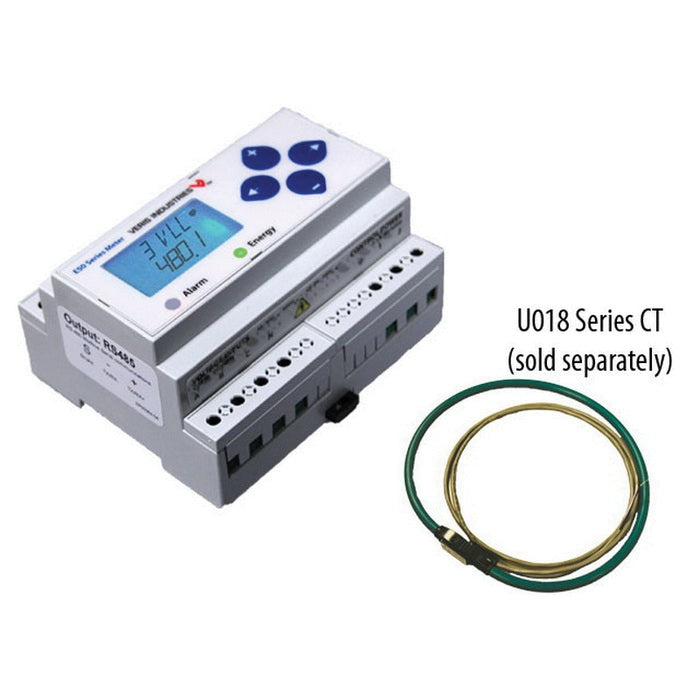

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to E50B1A

Jump to: Overview & Specifications Reviews

Overview Details for E50B1A

The E50B1A DIN rail power meter provides a solution for measuring energy data with a single device. Inputs include control power, CT and 3-phase voltage. The LCD screen on the faceplate allows instant output viewing. These meters include built-in CT integrators and CT power supplies. The E50B1A work only with Veris E683 series rope style CTs. The meter is housed in a plastic enclosure suitable for installation on T35 DIN rail according to EN 50022. The E50 can be mounted with any orientation over the entire ambient temperature range, either on a DIN rail or in a panel. The meter is not sensitive to CT orientation to reduce installation errors.

2 pulse output (normally open)
Mounting location - not suitable for wet locations, for indoor use only

Specifications

Item Number	E50B1A
Brand	Veris
Accuracy	+/- 0.2%
Communication	Pulse kYZ
Dimensions	3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H
Display Type	LCD
Environmental Conditions	Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m
Frequency Rating	50 - 60 Hz
Metering Product Family	E50 Power Meter
Monitored Voltage Range	90 - 600 VAC
Mounting	Din-Rail
Operating Temperature	-22 - 158 °F
Output Specifications	Pulse: 30 VAC/VDC; 100 mA Maximum (NO)
Power Monitoring	E5x Series Power and Energy Meters
Product Type	Compact Power and Energy Meter
Range	E50
