CWLSXX | CO2 | Wall | LCD | Veris (OBSOLETE)

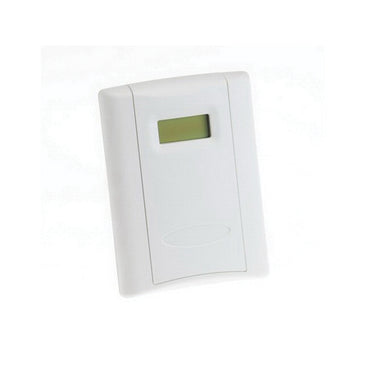

Deluxe Cloud White High-Impact ABS Plastic CO2 Sensor with LCD Display
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CWLSXX
Documents and manuals
Veris CWLSXX Documents
Overview
Details for CWLSXX
DISCONTINUED AND REPLACED WITH CW2LAXA
CO2 | Wall | LCD
Description
CDL/CWL carbon dioxide sensors maximize energy savings, while helping optimize ventilation. These sensors allow ventilation systems to be controlled by the amount of CO2 present in a space. The CWL/CDL Series detect fluctuations in CO2 levels and signal ventilation systems to provide an inlet of fresh air optimal for the space at a given time saving energy and increasing tenant comfort.
APPLICATIONS
- Controlling ventilation in response to occupancy
- Facilitating compliance with ASHRAE 62.1 standard for air quality
- Office buildings, conference rooms, schools, retail stores, etc.
Specifications
Item Number | CWLSXX |
Brand | Veris |
Application Zone | Living Space |
Application | Wall |
Brand | Veris |
CO2 Measurement Accuracy | ±30 ppm ±2% of measured value |
CO2 Measurement Range | 0 - 2000 ppm | 0 - 5000 ppm |
CO2 Measurement Repeatability | ±20 ppm ±1% of measured value |
CO2 Measurement Resolution | 1 ppm |
CO2 Sensor Type | NDIR |
Color | Cloud White |
Dimension Depth | 1.2" (30 mm) |
Dimension Height | 4.8" (122 mm) |
Dimension Width | 3.5" (89 mm) |
Display Resolution | 2 Rows x 8 Characters |
Display Size | 1.2" x 0.6" (30;5 mm x 14 mm) |
Display Type | LCD |
Electrical Wiring Size | 24 - 18 AWG (0.22 - 0.75 mm²) |
Enclosure Material | ABS Plastic |
Humidity Calibration Certificate | None |
Measurement Type | CO2 |
Mounting | Wall |
Operating Humidity | 0 - 95% RH; non-condensing |
Operating Temperature | 32 - 122 °F (0 - 50 °C) |
Output Specifications | 4 - 20 mA | 0 - 5 V | 0 - 10 V |
Outputs | Analog output |
Override | No |
Product Certification | CE |
Product Type | Sensor |
Range | CWL |
Response Time | CO2: <60 seconds for 90% step change |
Sensor Configuration | Wall |
Sensor | CO2 Carbon Dioxide |
Setpoint | No |
Supply Voltage AC Nominal | 24 VAC |
Supply Voltage DC Nominal | 20 - 30 VDC |
Temperature Calibration Certificate | None |
Temperature Sensor Type | None |
Warranty | 5 years |
