CWE2H | Sensor, CO2, Economy, Wall,Temp,10K T3 | Veris
Sensor, CO2, Economy, Wall,Temp,10K T3

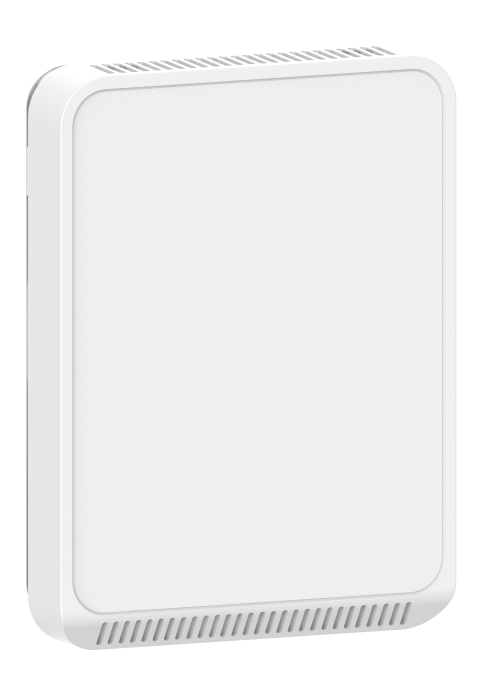

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CWE2H
Documents and manuals
Veris CWE2H Documents
Overview
Details for CWE2H
Sensor, CO2, Economy, Wall,Temp,10K T3
The CWE2 Series of air quality sensors for living space are for use with BAS controllers designed to accept 4 to 20mA, 0 to 5 Vdc or 0 to 10 Vdc outputs. These sensors measure CO2 levels using a dual-beam, non-dispersive infrared (NDIR) technology. The CWE2 Series Economy sensor has an accuracy of ±30 ppm ±3% of measured value, features 2-wire 4 to 20mA and 3-wire voltage outputs, and is available with optional temperature output.
Specifications
Item Number | CWE2H |
Brand | Veris |
CO2 Measurement Accuracy | ±30 ppm ±3% of measured value |
CO2 Measurement Range | 0 to 2000ppm |
CO2 Measurement Repeatability | ±20 ppm ±1% of measured value |
CO2 Measurement Resolution | 1 ppm |
CO2 Response Time | =75 seconds for 90 degree step change |
CO2 Sensor Type | Dual beam non-dispersive infrared (NDIR); diffusion sampling |
Color | Matte White |
Electrical Wiring Size | Screw terminals; 18-24 AWG |
Enclosure Material | High impact ABS plastic |
Humidity Measurement Accuracy | ±2% from 10 to 80% RH @ 25°C (77 °F) |
Input Specifications | Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz |
IP Protection | IP20 |
Measurement Type | CO2; Temp |
Operating Current | 20mA |
Operating Humidity | 0 to 95% RH non-condensing |
Operating Temperature | 0 to 50 °C (32 to 122 °F) |
Output Specifications | Selectable 4 to 20 mA (2-wire); 0 to 5 V (3-wire); 0 to 10 V (3-wire) |
Outputs | Analog |
Standards EMC | EN61000 Series - industrial immunity |
Standards | CE; UL 916; RCM; ICES-003. REACH; RoHS |
Temperature Measurement Accuracy | ±0.2 °C (±0.4 °F) typical |
Temperature Measurement Range | 0 to 50 °C (32 to 122 °F) |
Temperature Measurement Resolution | 0.1 °C (0.1 °F) |
Temperature Sensor Type | 10K Ohm Type 3 Thermistor |
Warranty | 3 Years |
