CWE2D | Sensor, CO2, Economy, Wall,Temp,10K T2 | Veris
Sensor, CO2, Economy, Wall,Temp,10K T2

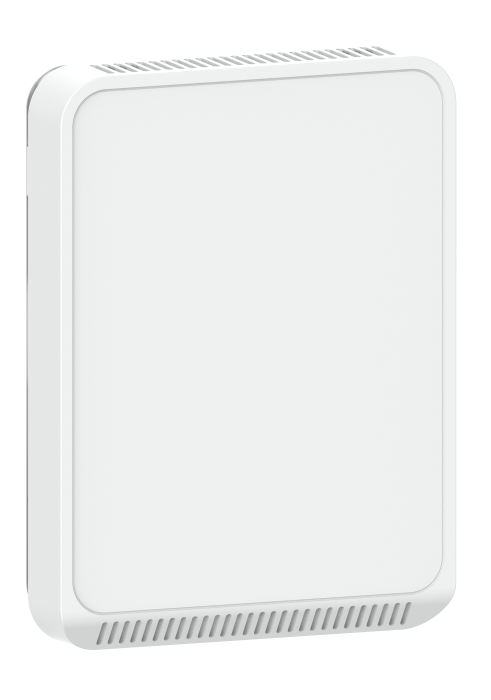

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CWE2D
Overview Details for CWE2D
The CWE2 Series of air quality sensors for living space are for use with BAS controllers designed to accept 4 to 20mA, 0 to 5 Vdc or 0 to 10 Vdc outputs. These sensors measure CO2 levels using a dual-beam, non-dispersive infrared (NDIR) technology. The CWE2D measures temperature as well. The CWE2 Series Economy sensor has an accuracy of ±30 ppm ±3% of measured value, features 2-wire 4 to 20mA and 3-wire voltage outputs.
- NDIR CO2 sensor
- 10K Ohm Type 2 Thermistor Temperature Sensor
- Temperature accuracy: ±1.0 °C (±1.8 °F) typical
- Lower Installation costs: 2 wire current outputs
- Competitively priced sensors
- Easy installation: large wiring terminals on baseplate screw simplify installation and service
- Flexibility: field selectable outputs
- Easy to maintain: self calibrating
Specifications
Item Number | CWE2D |
Brand | Veris |
CO2 Measurement Accuracy | ±30 ppm ±3% of measured value |
CO2 Measurement Range | 0 to 2000ppm |
CO2 Measurement Repeatability | ±20 ppm ±1% of measured value |
CO2 Measurement Resolution | 1 ppm |
CO2 Response Time | =75 seconds for 90 degree step change |
CO2 Sensor Type | Dual beam non-dispersive infrared (NDIR); diffusion sampling |
Color | Matte White |
Electrical Wiring Size | Screw terminals; 18-24 AWG |
Enclosure Material | High impact ABS plastic |
Humidity Measurement Accuracy | ±2% from 10 to 80% RH @ 25°C (77 °F) |
Input Specifications | Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz |
IP Protection | IP20 |
Measurement Type | CO2 / Temperature |
Operating Current | 20mA |
Operating Humidity | 0 to 95% RH non-condensing |
Operating Temperature | 0 to 50 °C (32 to 122 °F) |
Output Specifications | Selectable 4 to 20 mA (2-wire); 0 to 5 V (3-wire); 0 to 10 V (3-wire) |
Outputs | Analog |
Standards EMC | EN61000 Series - industrial immunity |
Standards | CE; UL 916; RCM; ICES-003. REACH; RoHS |
Temperature Measurement Accuracy | ±1.0 °C (±1.8 °F) typical |
Temperature Measurement Range | 0 to 50 °C (32 to 122 °F) |
Temperature Measurement Resolution | 0.1 °C (0.1 °F) |
Temperature Sensor Type | 10K Ohm Type 2 Thermistor |
Warranty | 3 Years |
