Documents: CW2LPXAV

Datasheet More Info

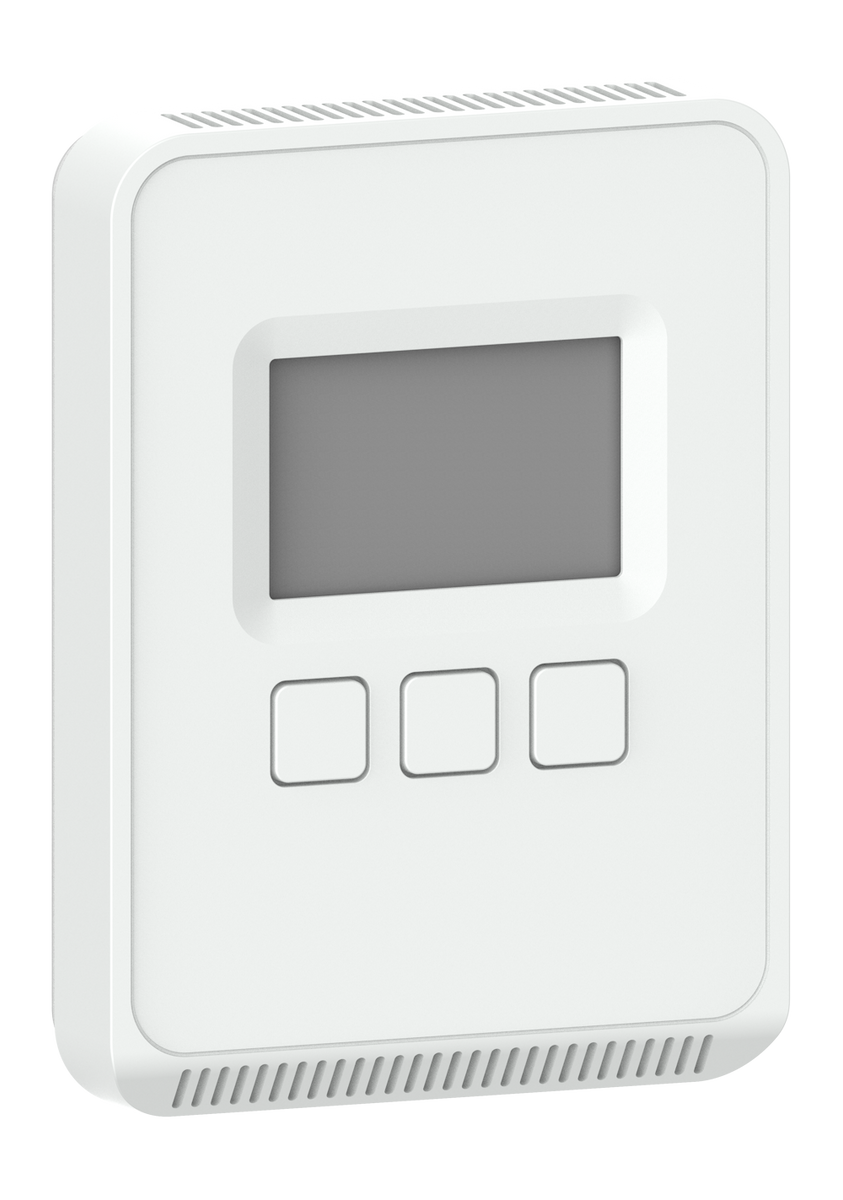

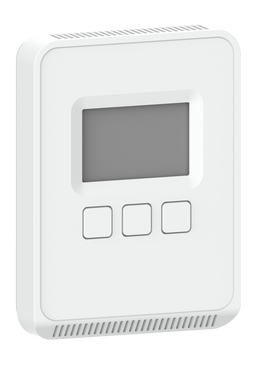

CW2LPXAV | CO2,Wall,LCD,Temp, Xmtr,VOC,Prot | Veris

Sensor, CO2, Wall, LCD,Temp, Transmitter, VOC, BACnet/Modbus

Brand: VerisSKU: CW2LPXAV

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CW2LPXAV

Jump to: Overview & Specifications Reviews

Overview Details for CW2LPXAV

Specifications

Item Number	CW2LPXAV
Brand	Veris
CO2 Measurement Accuracy	±30 ppm ±3% of measured value
CO2 Measurement Range	0 to 2000/5000 ppm (selectable)
CO2 Measurement Repeatability	±20 ppm ±1% of measured value
CO2 Measurement Resolution	1 ppm
CO2 Response Time	<60 seconds for 90% step change
CO2 Sensor Type	Non-dispersive infrared (NDIR); diffusion sampling
Color	Matte White
Communication Specifications	BACnet MSTP or Modbus via RS-485; selectable
Communication	Protocol
Display Size	2.05 in (52 mm)
Display Type	Segmented LCD; with 3 Buttons
Electrical Wiring Size	Screw terminals; 18-24 AWG
Enclosure Material	High impact ABS plastic
Humidity Measurement Linearity	Included in accuracy specification
Humidity Measurement Resolution	0.1% RH
Input Specifications	Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz
IP Protection	IP20
Measurement Type	CO2 / VOC / Temperature
Operating Humidity	0 to 95% RH non-condensing
Operating Temperature	0 to 50 °C (32 to 122 °F)
Setpoint Range	Temperature: Scale: 0 to 50 °C (32 to 122 °F) max.; adjustable span. Fan Speed: Off; Low; Med.; High.
Setpoint Specifications	Temperature and fan speed
Setpoint	Yes
Standards EMC	EN61000 Series - industrial immunity
Standards	CE; UL 916; RCM; ICES-003. REACH; RoHS
Temperature Measurement Accuracy	±0.2 °C (±0.4 °F) typical
Temperature Measurement Range	0 to 50 °C (32 to 122 °F)
Temperature Measurement Resolution	0.1 °C (0.1 °F)
Temperature Sensor Type	Solid state; integrated circuit
VOC Measurement Accuracy	±15% of measured value
VOC Measurement Range	0 to 100% AQI for VOC
VOC Output Scale	0 to 1;000 ppb of total VOC (TVOC)
VOC Sensor Type	Solid state
Warranty	5 Years
