CW2LAXC | CO2,Wall,LCD,Temp,1K Pt | Veris

Sensor, CO2, Wall, LCD,Temp, 1k Platinum RTD

Brand: VerisSKU: CW2LAXC

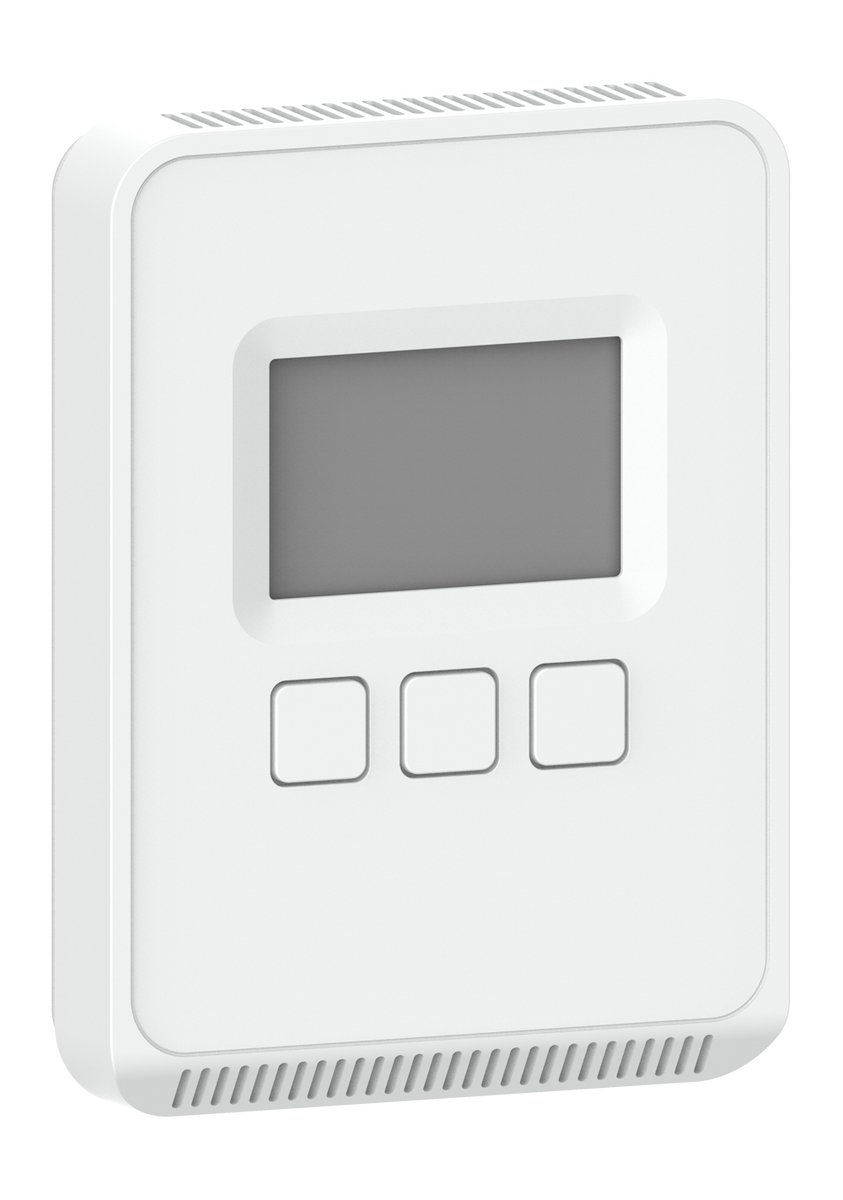

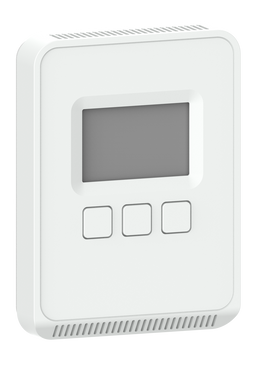

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CW2LAXC

Jump to: Overview & Specifications Reviews

Overview Details for CW2LAXC

The CW2LAXC is an analog multi sensor platform for use with various brands of BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, 0 to 10Vdc, and various thermistor outputs. The CW2 series sensors feature no-logo on the faceplate. CO2 and temperature sensors are included with all CW2 Series air quality sensors.

CO2 and Temperature sensor
LCD screen with buttons
High CO2 accuracy: NDIR Non-dispersive infrared (NDIR), diffusion sampling
CO2 Accuracy: ±30 ppm ±3% of measured value
RTD, 1k Ohm Platinum Temperature sensor
Temperature measurement accuracy ±0.3 °C
Field Selectable outputs
Easy to install: snap on covers with security screw simplify installation and service
Easy Maintenance: Self Calibrating

Specifications

Item Number	CW2LAXC
Brand	Veris
CO2 Measurement Accuracy	±30 ppm ±3% of measured value
CO2 Measurement Range	0 to 2000/5000 ppm (selectable)
CO2 Measurement Repeatability	±20 ppm ±1% of measured value
CO2 Measurement Resolution	1 ppm
CO2 Response Time	<60 seconds for 90% step change
CO2 Sensor Type	Non-dispersive infrared (NDIR); diffusion sampling
Color	Matte White
Display Size	2.05 in (52 mm)
Display Type	Segmented LCD; with 3 Buttons
Electrical Wiring Size	Screw terminals; 18-24 AWG
Enclosure Material	High impact ABS plastic
Input Specifications	Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz
IP Protection	IP20
Measurement Type	CO2 / Temperature
Operating Humidity	0 to 95% RH non-condensing
Operating Temperature	0 to 50 °C (32 to 122 °F)
Output Specifications	Selectable 4 to 20 mA; 0 to 5 V; 0 to 10 V
Outputs	Analog
Override	Yes
Setpoint Range	Temperature: 0 to 50 °C (32 to 122 °F) / 10 to 35 °C (50 to 95 °F); selectable Fan Speed: Off; Low; Med.; High.
Setpoint Specifications	0-10Vdc. Temperature or fan speed (one setpoint type is selectable via dip switch)
Setpoint	Yes
Standards EMC	EN61000 Series - industrial immunity
Standards	CE; UL 916; RCM; ICES-003. REACH; RoHS
Temperature Measurement Accuracy	±0.3 °C
Temperature Measurement Range	0 to 50 °C (32 to 122 °F)
Temperature Measurement Resolution	0.1 °C (0.1 °F)
Temperature Sensor Type	RTD; 1K Ohm Platinum
Warranty	5 Years
