CW2LAXA | CO2,Wall,LCD,Temp, Xmtr | Veris

Sensor, CO2, Wall, LCD,Temp, Transmitter

Brand: VerisSKU: CW2LAXA

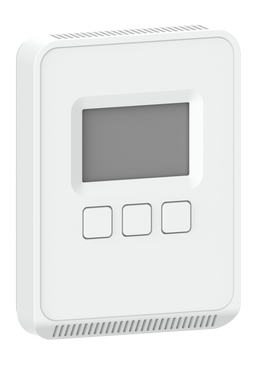

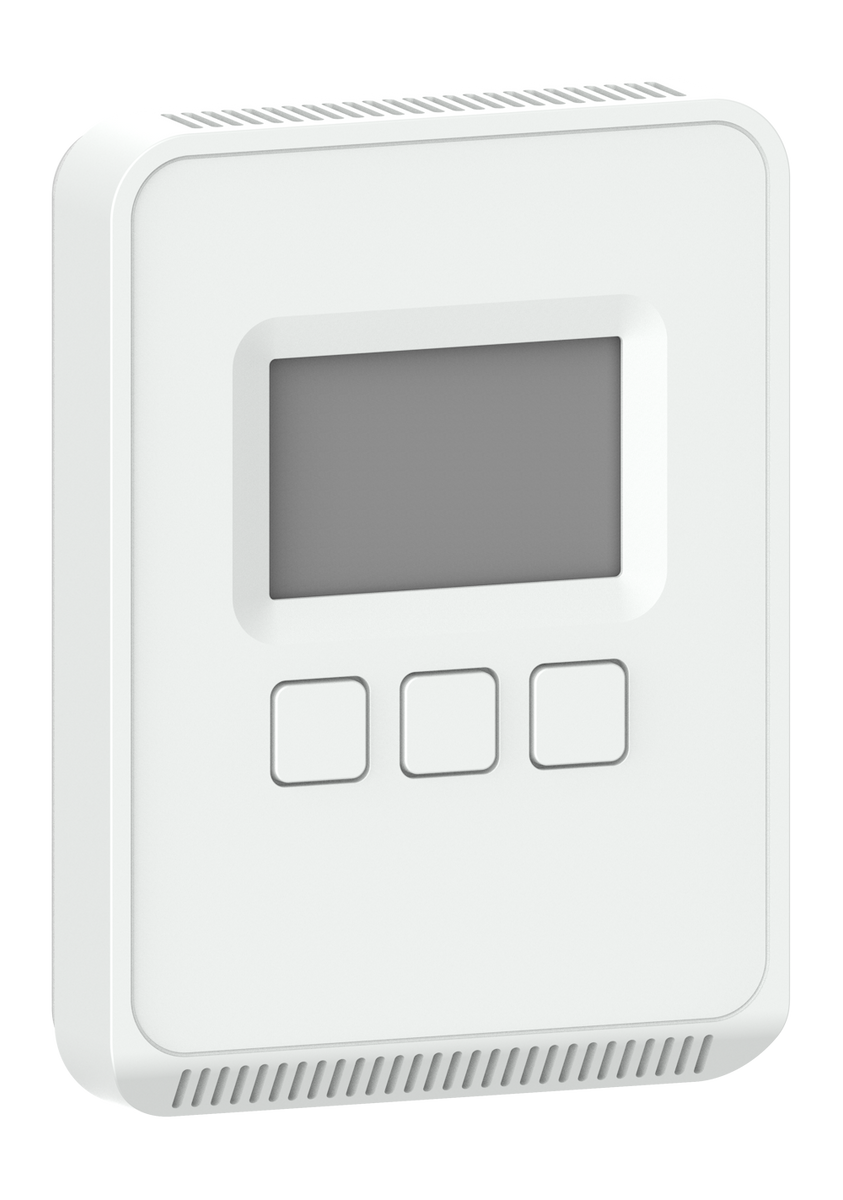

Veris | CW2LAXA
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CW2LAXA

Overview Details for CW2LAXA

The CW2LAXA is an analog multi sensor platform for use with various brands of BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, 0 to 10Vdc, and various thermistor outputs. The CW2 series sensors feature no-logo on the faceplate. CO2 and temperature sensors are included with all CW2 Series air quality sensors.

  • CO2 and Temperature sensor
  • LCD screen with buttons
  • High CO2 accuracy: NDIR Non-dispersive infrared (NDIR), diffusion sampling
  • CO2 Accuracy: ±30 ppm ±3% of measured value
  • Solid state, integrated circuit Temperature sensor
  • Temperature measurement accuracy: ±0.2 °C (±0.4 °F) typical
  • Field Selectable outputs
  • Easy to install: snap on covers with security screw simplify installation and service
  • Easy Maintenance: Self Calibrating

Specifications

Item Number CW2LAXA
Brand Veris
CO2 Measurement Accuracy ±30 ppm ±3% of measured value
CO2 Measurement Range 0 to 2000/5000 ppm (selectable)
CO2 Measurement Repeatability ±20 ppm ±1% of measured value
CO2 Measurement Resolution 1 ppm
CO2 Response Time <60 seconds for 90% step change
CO2 Sensor Type Non-dispersive infrared (NDIR); diffusion sampling
Color Matte White
Display Size 2.05 in (52 mm)
Display Type Segmented LCD; with 3 Buttons
Electrical Wiring Size Screw terminals; 18-24 AWG
Enclosure Material High impact ABS plastic
Input Specifications Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz
IP Protection IP20
Measurement Type CO2 / Temperature
Operating Humidity 0 to 95% RH non-condensing
Operating Temperature 0 to 50 °C (32 to 122 °F)
Output Specifications Selectable 4 to 20 mA; 0 to 5 V; 0 to 10 V
Outputs Analog
Override Yes
Setpoint Range Temperature: 0 to 50 °C (32 to 122 °F) / 10 to 35 °C (50 to 95 °F); selectable Fan Speed: Off; Low; Med.; High.
Setpoint Specifications 0-10Vdc. Temperature or fan speed (one setpoint type is selectable via dip switch)
Setpoint Yes
Standards EMC EN61000 Series - industrial immunity
Standards CE; UL 916; RCM; ICES-003. REACH; RoHS
Temperature Measurement Accuracy ±0.2 °C (±0.4 °F) typical
Temperature Measurement Range 0 to 50 °C (32 to 122 °F)
Temperature Measurement Resolution 0.1 °C (0.1 °F)
Temperature Sensor Type Solid state; integrated circuit
Warranty 5 Years
