CW2LA2A | CO2,Wall,LCD,RH 2%,Temp, Xmtr | Veris

Sensor, CO2, Wall, LCD, Humidity w/2% Accuracy,Temp, Transmitter

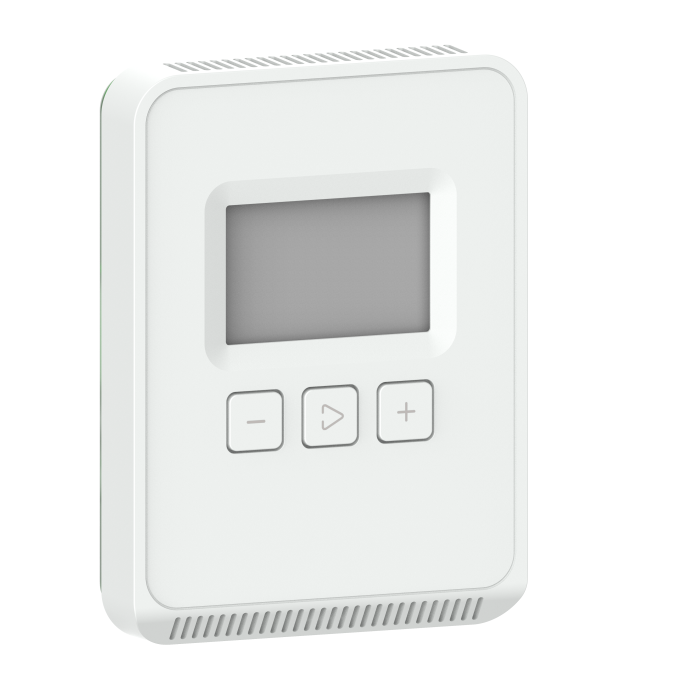

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CW2LA2A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris CW2LA2A Documents

Datasheet Installation Guide More Info

Overview

Details for CW2LA2A

CO2,Wall,LCD,RH 2%,Temp, Xmtr

Specifications

Item Number	CW2LA2A
Brand	Veris
CO2 Measurement Accuracy	±30 ppm ±3% of measured value
CO2 Measurement Range	0 to 2000/5000 ppm (selectable)
CO2 Measurement Repeatability	±20 ppm ±1% of measured value
CO2 Measurement Resolution	1 ppm
CO2 Response Time	<60 seconds for 90% step change
CO2 Sensor Type	Non-dispersive infrared (NDIR); diffusion sampling
Color	Matte White
Display Size	2.05 in (52 mm)
Display Type	Segmented LCD; with 3 Buttons
Electrical Wiring Size	Screw terminals; 18-24 AWG
Enclosure Material	High impact ABS plastic
Humidity Calibration Certificate	Replaceable RH element available in 1% & 2% with NISTcalibration certificate
Humidity Measurement Accuracy	±2% from 10 to 80% RH @ 25°C (77 °F)
Humidity Measurement Linearity	Included in accuracy specification
Humidity Measurement Range	0 to 100% RH
Humidity Measurement Resolution	0.1% RH
Humidity Sensor Type	Thin-film capacitive; replaceable
Input Specifications	Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz
IP Protection	IP20
Measurement Type	CO2 / RH / Temperature
Operating Humidity	0 to 95% RH non-condensing
Operating Temperature	0 to 50 °C (32 to 122 °F)
Output Specifications	Selectable 4 to 20 mA; 0 to 5 V; 0 to 10 V
Outputs	Analog
Override	Yes
Setpoint Range	Temperature: 0 to 50 °C (32 to 122 °F) / 10 to 35 °C (50 to 95 °F); selectable Humidity: 0 to 100% RH. Fan Speed: Off; Low; Med.; High.
Setpoint Specifications	0-10Vdc. Temperature; humidity or fan speed (one setpoint type is selectable via dip switch)
Setpoint	Yes
Standards EMC	EN61000 Series - industrial immunity
Standards	CE; UL 916; RCM; ICES-003. REACH; RoHS
Temperature Measurement Accuracy	±0.2 °C (±0.4 °F) typical
Temperature Measurement Range	0 to 50 °C (32 to 122 °F)
Temperature Measurement Resolution	0.1 °C (0.1 °F)
Temperature Sensor Type	Solid state; integrated circuit
Warranty	5 Years
