CRLSXX | CO2 | Remote | LCD | CE | Veris

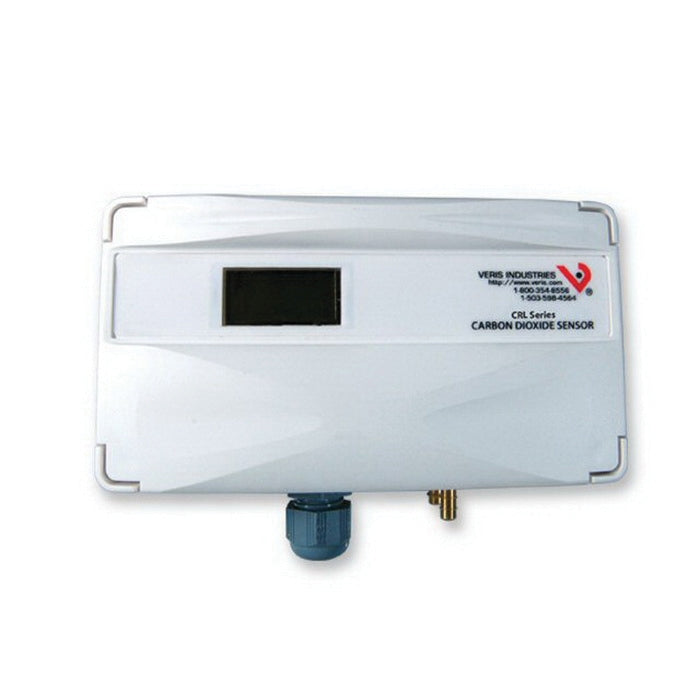

High-Impact ABS Plastic Remote Mount CO2 Sensor

Brand: VerisSKU: CRLSXX

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CRLSXX

Jump to: Overview & Specifications Reviews

Overview Details for CRLSXX

The CRLSXX remote mount carbon dioxide sensor is designed for use in HVAC control applications. Inside buildings, people are the major source of CO2. By controlling fresh air based on CO2 levels, energy can be saved and tenant comfort improved. The remote capability of the CRLSXX provides flexibility for unique applications.

Non-dispersive infrared technology (NDIR) repeatable to +/-20 ppm +/-1% of measured value high accuracy measurement
Low ambient sensitivity
Microprocessor based design reduces long-term drift and calibration requirements
Innovative self-calibration algorithm easy to maintain, 5 years calibration interval (recommended)
LCD display for visibility
Field-selectable 4 to 20 mA/0 to 5 V/0 to 10 V output for system flexibility
Non-dispersive infrared, diffusion sampling sensor

Specifications

Item Number	CRLSXX
Brand	Veris
Application Zone	Plant Room
Application	Remote
Brand	Veris
CO2 Measurement Accuracy	±30 ppm ±2% of measured value
CO2 Measurement Range	0 - 2000 ppm \| 0 - 5000 ppm
CO2 Measurement Repeatability	±20 ppm ±1% of measured value
CO2 Measurement Resolution	1 ppm
CO2 Sensor Type	NDIR
Color	Cloud White
Dimension Depth	2.4" (61 mm)
Dimension Height	3.1" (78 mm)
Dimension Width	6.7" (170 mm)
Display Resolution	2 Rows x 8 Characters
Display Size	1.2" x 0.6" (30;5 mm x 14 mm)
Display Type	LCD
Electrical Wiring Size	24 - 14 AWG (0.22 - 2.5 mm²)
Enclosure Material	ABS Plastic
Measurement Type	CO2
Mounting	Panel
Operating Humidity	0 - 95% RH; non-condensing
Operating Temperature	32 - 122 °F (0 - 50 °C)
Output Specifications	4 - 20 mA \| 0 - 5 V \| 0 - 10 V
Outputs	Analog output
Product Certification	CE
Product Type	Sensor
Range	CRL
Response Time	CO2: <60 seconds for 90% step change
Sensor Configuration	Duct
Sensor	CO2 Carbon Dioxide
Supply Voltage AC Nominal	24 VAC
Supply Voltage DC Nominal	20 - 30 VDC
Temperature Calibration Certificate	None
Warranty	5 years
With LCD	Yes
