BGR-VCA040-C-S-S-W-V-E-WW-SSSG | Flow | Vortex | 4" | Steam | Insertion | mA/Pulse | Veris

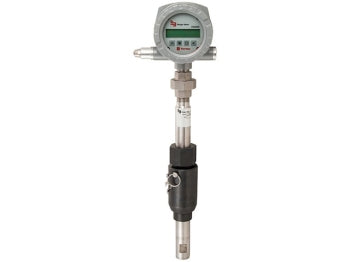

Insertion Steam Flow Sensor, 4", Stainless Steel Vortex Assembly

Brand: VerisSKU: BGR-VCA040-C-S-S-W-V-E-WW-SSSG

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BGR-VCA040-C-S-S-W-V-E-WW-SSSG

Jump to: Overview & Specifications Reviews

Overview Details for BGR-VCA040-C-S-S-W-V-E-WW-SSSG

The VN2000 Compact Insertion Vortex Flow Meter measures the flow of
steam over a large flow range. The meter includes a mounting assembly
alignment pin to simplify the installation. The meter is designed for
specific pipe sizes and includes parts for installation. The vortex sensing
element is CNC machined out of one piece of solid stainless steel and
engineered to stand up to abusive environments inside and outside
the pipe. The dual ceramic piezoelectric sensors are bonded inside the
vortex element, which is press-fit to the stainless steel insertion bar and
completely welded together. There are no internal O-rings or seals of
any kind and absolutely no leak paths into the sensors or electronics.
These sensors do not touch the process fluid, which gives them an
almost unlimited life span.

Specifications

Item Number	BGR-VCA040-C-S-S-W-V-E-WW-SSSG
Brand	Veris
Application	Flow
Connections	1-1/2 in. Carbon Steel Mounting Assembly. Sealing Assembly: 2 Ethylene Propylene O-rings.
Display Flow Rate	6 Digits with Decimal; Totalizer
Display Type	2×16 Characters Reflective Display; Rotatable
Fitting Size	4" Pipe
Flow Measurement Accuracy	±1% of Reading
Flow Measurement Range	1 - 20 ft/s (0.3 - 6 m/s)
Flow Measurement Repeatability	±0.25% of Reading
Flow Sensor Type	Dual Piezo Vortex Sensors
Keypad	4 Membrane Buttons
Maximum Pressure	1000 psi (68.9 bar)
Measurement Interval	Second; Minute; Hour; Day (Selectable)
Measurement Type	Flow
Measuring Units	Pounds; Kilograms; Tons; Metric Tons; Cubic Feet; Cubic Meters; Gallons; Liters
Media Temperature	-250 to 400 °F (-120 to 204 °C)
Medium	Steam
Operating Fluid Temperature	14 - 150 °F (-10 - 65 °C)
Operating Temperature	32 to 140° F (0 to 60° C)
Outputs	Pulse output. 4-20mA; Digital Output
Product Type	Sensor
Range	VN2000
Warranty	1 year
Wetted Materials	Stainless Steel 304L
