BGR-FC5-FD-P2-AA6A-W | Flow | Monitor | Freq | 4-20mA | MB/BN | Wall | Veris

Programmable BTU Monitor, Freq Out, BACnet/Modbus, Wall

Brand: VerisSKU: BGR-FC5-FD-P2-AA6A-W

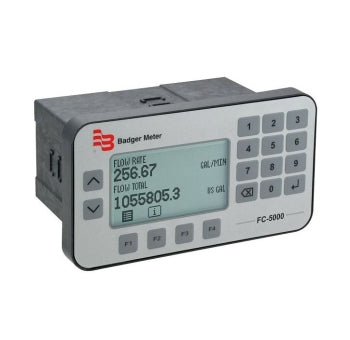

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BGR-FC5-FD-P2-AA6A-W

Jump to: Overview & Specifications Reviews

Overview Details for BGR-FC5-FD-P2-AA6A-W

The Badger Meter® FC-5000 is a microprocessor-driven device designed for energy/BTU and flow monitoring. The FC-5000 BTU Monitor is compatible with the complete line of Badger Meter industrial flow meters and temperature sensors, creating a solution to monitor hydronic energy usage, flow rate and totals. Many years of experience in the industrial market has allowed Badger Meter to incorporate features indispensable in control operations

Specifications

Item Number	BGR-FC5-FD-P2-AA6A-W
Brand	Veris
Application	Flow and BTU
Communication	EIA-485 (RS-485); Modbus; BACnet; USB
Display Type	128 × 64 pixel LCD graphical display; LED backlit
Keypad	Membrane overlay; domed tactile response keys; keypad interface is protected from ESD
Mounting	Wall
Operating Humidity	0 to 85%; non-condensing
Operating Temperature	32 to 130° F (0 to 55° C)
Output Frequency Range	TTL; 1 to 4000 Hz; square wave; Uncertainty: ±0.01% reading; Resolution: 0.01 Hz
Power Consumption	8 W (power supply must provide 8 W min.)
Product Type	BTU Monitor
Range	FC-5000 Series
Relay Configuration	One Form C mechanical relay and one Form A solid state relay
Relay Contact Ratings	Form C Relay : 5A (N.C. or N.O.); 5 to 24 Vdc; Form A Relay: 1A; 60V
Standards	CE; UL 61010-1 and ANSI/ISA- 61010-1
Supply Voltage AC Range	9 to 28Vac RMS (50 to 60 Hz)
Supply Voltage DC Range	10 to 40Vdc
Totalizer Resetable	Yes
Warranty	1 year
