BGR-FC5-FD-P1-AA6A-W | Flow,Monitor,4-20mA,MB/BN,1 Input,Wall | Veris
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BGR-FC5-FD-P1-AA6A-W
Overview
Details for BGR-FC5-FD-P1-AA6A-W

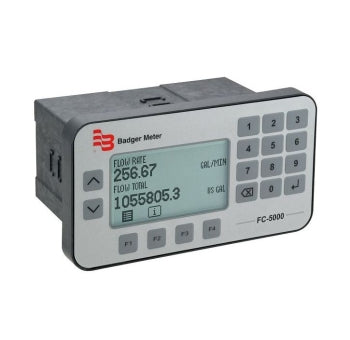

The Badger Meter® FC-5000 is a microprocessor-driven device designed for energy/BTU and flow monitoring. The FC-5000 BTU Monitor is compatible with the complete line of Badger Meter industrial flow meters and temperature sensors, creating a solution to monitor hydronic energy usage, flow rate and totals. Many years of experience in the industrial market has allowed Badger Meter to incorporate features indispensable in control operations
Specifications
Item Number | BGR-FC5-FD-P1-AA6A-W |
Brand | Veris |
Application | Flow and BTU |
Communication | EIA-485 (RS-485); Modbus; BACnet; USB |
Display Type | 128 × 64 pixel LCD graphical display; LED backlit |
Keypad | Membrane overlay; domed tactile response keys; keypad interface is protected from ESD |
Mounting | Panel |
Operating Humidity | 0 to 85%; non-condensing |
Operating Temperature | 32 to 130° F (0 to 55° C) |
Output Frequency Range | TTL; 1 to 4000 Hz; square wave; Uncertainty: ±0.01% reading; Resolution: 0.01 Hz |
Power Consumption | 8 W (power supply must provide 8 W min.) |
Product Type | BTU Monitor |
Range | FC-5000 Series |
Relay Configuration | One Form C mechanical relay and one Form A solid state relay |
Relay Contact Ratings | Form C Relay : 5A (N.C. or N.O.); 5 to 24 Vdc; Form A Relay: 1A; 60V |
Standards | CE; UL 61010-1 and ANSI/ISA- 61010-1 |
Supply Voltage AC Range | 9 to 28Vac RMS (50 to 60 Hz) |
Supply Voltage DC Range | 10 to 40Vdc |
Totalizer Resetable | Yes |
Warranty | 1 year |
