BGR-DQ-G-RZ-B-W-AF-WW-S-XX-VGF | Flow,USonic,2+",24V,NoDisp,30'cbl,BAC IP | Veris

Brand: VerisSKU: BGR-DQ-G-RZ-B-W-AF-WW-S-XX-VGF

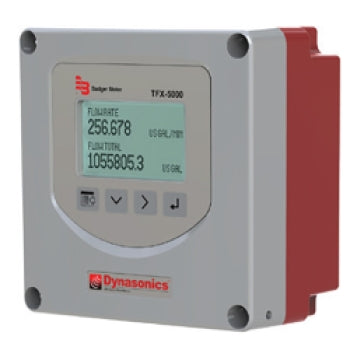

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BGR-DQ-G-RZ-B-W-AF-WW-S-XX-VGF

Jump to: Overview & Specifications Reviews

Overview Details for BGR-DQ-G-RZ-B-W-AF-WW-S-XX-VGF

Transit time flow meters measure the time difference between the travel time of an ultrasound wave going with the fluid flow and against the fluid flow. The time difference is used to calculate the velocity of the fluid traveling in a closed-pipe system. The transducers used in transit time measurements operate alternately as transmitters and receivers. Transit time measurements are bi-directional and are most effective for fluids that have low concentrations of suspended solids and are sonically conductive.

An ultrasonic meter equipped with heat flow capabilities measures the rate and quantity of heat delivered or removed from devices such as heat exchangers. By measuring the volumetric flow rate of the heat exchanger liquid, the temperature at the inlet pipe and the temperature at the outlet pipe, the energy usage can be calculated.

Specifications

Item Number	BGR-DQ-G-RZ-B-W-AF-WW-S-XX-VGF
Brand	Veris
Application	Flow
Communication Protocol	EIA-485: Modbus RTU or BACnet MS/TP Ethernet: 10/100 Base T RJ45; communication via Modbus TCP/IP
Display Type	128 × 64 pixel LED backlit graphical display; adjustable brightness and timeout; polycarbonate window Flow rate/total: 8-digit
Field Programmable	Yes
Fitting Size	2-8" Medium Pipe
Flow Measurement Accuracy	± 0.5% ± 0.025 ft/s (0.008 m/s) of reading
Flow Measurement Range	1 - 20 ft/s (0.3 - 6 m/s)
Flow Measurement Repeatability	0.2% above 1.5 ft/s
Flow Sensor Type	Ultrasonic
Housing	Aluminum construction; EPDM Gasket; NEMA Type 4X; IP67; 0.5" NPT Threads; No Cable Glands
Input Power	85 to 264V AC 47 to 63 Hz @ 24VA max. 1 Amp slow-blow fuse; manually field replaceable. Over-Voltage Rating Category II (CAT II)
Keypad	4-button navigation; keypad with tactile feedback; polyester film
Measurement Type	Flow
Medium	Water; sewage; cooling water; glycol; alcohol and chemicals
Operating Fluid Temperature	14 - 150 °F (-10 - 65 °C)
Operating Temperature	-4 to 140 ° F (-20 to 60 °C)
Outputs	4 to 20mA x 2 ; Frequency Output; Pulse (totalizer; programmable)
Pipe Material	Copper \| Polymer \| Steel \| Stainless Steel
Product Type	Sensor
Transducer Construction	PBT glass filled; Ultem®; Nylon cord grip; PVC cable jacket; –40 to 250° F (–40 to 121° C)
Transducers	2 Included. For 2-8" Medium Pipe with 50' Cables
Warranty	1 year
