Documents: BGR-B30BM-CS

Datasheet More Info

BGR-B30BM-CS | Meter | NG | MonDisp | MeterMount | 4-20mA/Pulse | Veris

Polycarbonate Meter Mount Basic Output Standard Housing Flow Monitor

Brand: VerisSKU: BGR-B30BM-CS

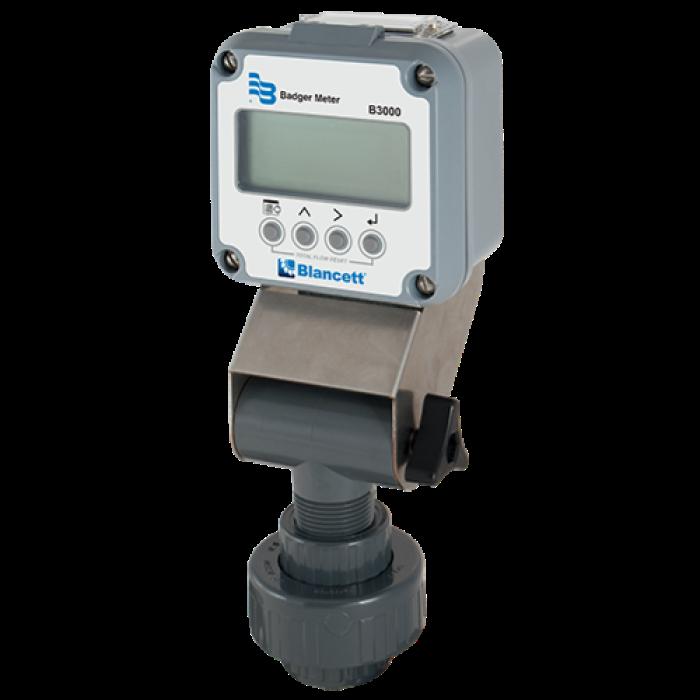

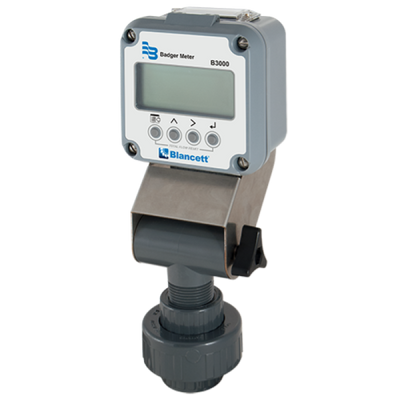

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BGR-B30BM-CS

Jump to: Overview & Specifications Reviews

Overview Details for BGR-B30BM-CS

Meter | NG | MonDisp | MeterMount | 4-20mA/Pulse

B30xx series flow monitors are offered for use with the B142 gas Quicksert gas flow meter. The B30xx series provides a flexible, durable, easy-to-use platform for flow metering applications.

NEMA 4X (IP66) enclosure with meter mount
Battery and 4 to 20 mA loop power options can be installed in remote locations and be up and running immediately
Battery life up to 8 years maintain readings and settings during power loss
All models feature pulse and 4 to 20 mA outputs
Robust alarm parameters - faster warning when something in the system changes
Auto switching between internal battery and external loop power, battery: 3.6 VDC lithium D Cell gives up to 6 years of service life Loop: 4 to 20 mA, 2-wire, 25 mA limit, non-polarity sensitive, 7 VDC loop loss
Polycarbonate, stainless steel, polyurethane, thermoplastic elastomer, acrylic; NEMA 4X/ IP66

Specifications

Item Number	BGR-B30BM-CS
Brand	Veris
Application	Flow
Display Type	LCD
Field Programmable	Yes
Fitting Material	Stainless Steel
Flow Measurement Accuracy	±2.05%
IP Protection	IP66 (NEMA 4)
Measurement Type	Flow
Operating Temperature	-40 - 330 °F (-40 - 165 °C)
Output Specifications	4 - 20 mA \| Scaled Pulse
Outputs	Analog output \| Pulse output
Product Certification	UL 913 \| CSA 22.2
Product Type	Monitor
Range	QuikSert
Standards	ATEX II
Totalizer Quantities	2
Totalizer Resettable	Yes
Warranty	1 year
