BGR-B142-20M | Meter | NG-QS | 2" | MedRate | Freq-Out | Veris

14 to 210 acfm Medium Rate Pulse Gas Turbine Flow Meter

Brand: VerisSKU: BGR-B142-20M

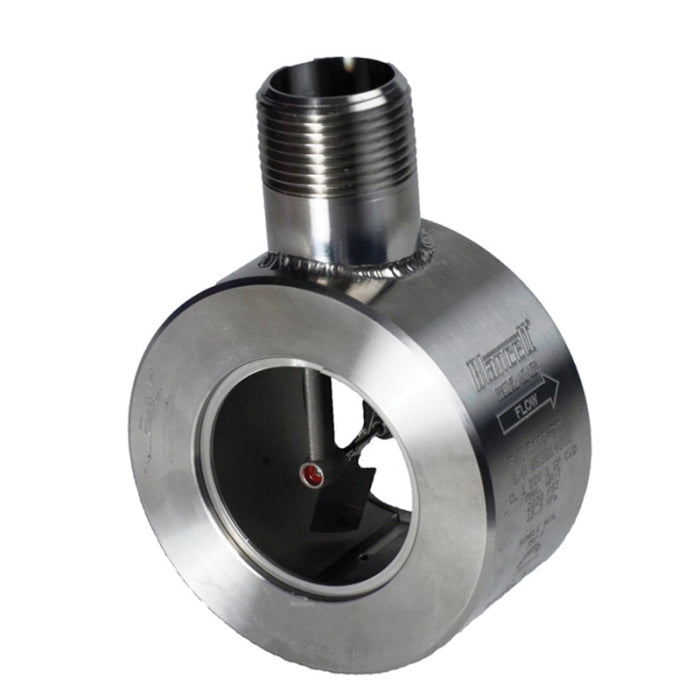

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BGR-B142-20M

Jump to: Overview & Specifications Reviews

Overview Details for BGR-B142-20M

B142 series gas turbine flow meter offers reliable measurement of natural gas flow rates in boiler systems. The stainless steel housing and tungsten carbide shaft and bearings are durable in any compatible environment. The unique wafer style design is fast and easy to install between two 2 in ANSI flanges, reducing costly downtime. The B142 meter is compatible with the B3000 flow monitor for a complete flow monitoring system. The B142 is also compatible with most standard computers, simplifying configuration within existing systems.

Consistent, reliable gas flow measurement
Wafer mount - better fit in limited spaces
Lightweight balanced rotor quick response to changes in flow rate
No mating flange design - allows quick and easy installation
Durable - reliable performance in harsh environmental conditions
304 stainless steel bearing mounts, 316 stainless steel set screws and pressure port plug, tungsten carbide bearings and rotor shaft, 410 stainless steel rotor
3 in of water column (7.5 mbar) at maximum rated flow rate (dry air)
100 mV P-P minimum output voltage when used with B111113 magnetic pickup

Consistent, reliable gas flow measurement
Wafer mount - better fit in limited spaces
Lightweight balanced rotor quick response to changes in flow rate
No mating flange design - allows quick and easy installation
Durable - reliable performance in harsh environmental conditions
304 stainless steel bearing mounts, 316 stainless steel set screws and pressure port plug, tungsten carbide bearings and rotor shaft, 410 stainless steel rotor
3 in of water column (7.5 mbar) at maximum rated flow rate (dry air)
100 mV P-P minimum output voltage when used with B111113 magnetic pickup

Specifications

Item Number	BGR-B142-20M
Brand	Veris
Application	Flow; Nat. Gas
Fitting Material	Stainless Steel
Fitting Size	2"
Fitting Type	Squeeze
Flow Measurement Accuracy	±2%
Flow Measurement Range	14 - 210 ACFM (0.39 - 5.9 AC mm)
Flow Measurement Range	35 - 350 ACFM (0.99 - 9.9 AC mm)
Flow Measurement Repeatability	±0.5%
Flow Sensor Type	Impeller
Measurement Type	Flow
Medium	Natural Gas
Operating Fluid Temperature	-40 - 330 °F (-40 - 165 °C)
Operating Temperature	-40 - 330 °F (-40 - 165 °C)
Outputs	Frequency output
Pipe Material	Copper \| Polymer \| Steel \| Stainless Steel
Product Certification	UL \| CE
Product Type	Sensor
Range	B142 Series
Standards	ANSI 12.27.01
Warranty	1 year
