BGR-B142-20L | Meter | NG-QS | 2" | LowRate | Freq-Out | Veris

35 to 350 acfm High Rate Pulse Gas Turbine Flow Meter

Veris | BGR-B142-20L

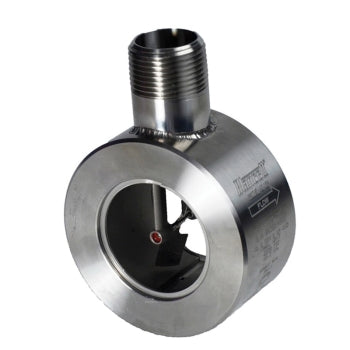

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BGR-B142-20L

Documents and manuals

Veris BGR-B142-20L Documents

Overview

Details for BGR-B142-20L

Meter | NG-QS | 2" | LowRate | Freq-Out

B142 series gas turbine flow meter offers reliable measurement of natural gas flow rates in boiler systems. The stainless steel housing and tungsten carbide shaft and bearings are durable in any compatible environment. The unique wafer style design is fast and easy to install between two 2 in ANSI flanges, reducing costly downtime. The B142 meter is compatible with the B3000 flow monitor for a complete flow monitoring system. The B142 is also compatible with most standard computers, simplifying configuration within existing systems.

  • Consistent, reliable gas flow measurement
  • Wafer mount - better fit in limited spaces
  • Lightweight balanced rotor quick response to changes in flow rate
  • No mating flange design - allows quick and easy installation
  • Durable - reliable performance in harsh environmental conditions
  • 304 stainless steel bearing mounts, 316 stainless steel set screws and pressure port plug, tungsten carbide bearings and rotor shaft, 410 stainless steel rotor
  • 3 in of water column (7.5 mbar) at maximum rated flow rate (dry air)
  • 100 mV P-P minimum output voltage when used with B111113 magnetic pickup

Specifications

Item Number BGR-B142-20L
Brand Veris
Application Flow; Nat. Gas
Fitting Material Stainless Steel
Fitting Size 2"
Fitting Type Squeeze
Flow Measurement Accuracy ±2%
Flow Measurement Range 35 - 350 ACFM (0.99 - 9.9 AC mm)
Flow Measurement Repeatability ±0.5%
Flow Sensor Type Impeller
Measurement Type Flow
Medium Natural Gas
Operating Fluid Temperature -40 - 330 °F (-40 - 165 °C)
Operating Temperature -40 - 330 °F (-40 - 165 °C)
Outputs Frequency output
Pipe Material Copper | Polymer | Steel | Stainless Steel
Product Certification UL | CE
Product Type Sensor
Range B142 Series
Standards ANSI 12.27.01
Warranty 1 year
