BGR-B142-20H | Meter | NG-QS | 2" | HighRate | Freq-Out | Veris
35 to 350 acfm High Rate Pulse Gas Turbine Flow Meter
Overview Details for BGR-B142-20H

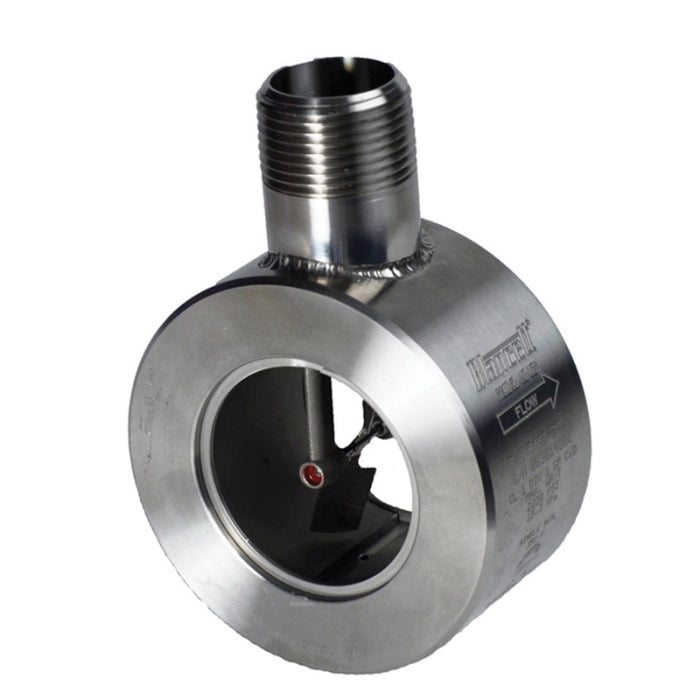

B142 series gas turbine flow meter offers reliable measurement of natural gas flow rates in boiler systems. The stainless steel housing and tungsten carbide shaft and bearings are durable in any compatible environment. The unique wafer style design is fast and easy to install between two 2 in ANSI flanges, reducing costly downtime. The B142 meter is compatible with the B3000 flow monitor for a complete flow monitoring system. The B142 is also compatible with most standard computers, simplifying configuration within existing systems.
- Consistent, reliable gas flow measurement
- Wafer mount - better fit in limited spaces
- Lightweight balanced rotor quick response to changes in flow rate
- No mating flange design - allows quick and easy installation
- Durable - reliable performance in harsh environmental conditions
- 304 stainless steel bearing mounts, 316 stainless steel set screws and pressure port plug, tungsten carbide bearings and rotor shaft, 410 stainless steel rotor
- 3 in of water column (7.5 mbar) at maximum rated flow rate (dry air)
- 100 mV P-P minimum output voltage when used with B111113 magnetic pickup
B142 series gas turbine flow meter offers reliable measurement of natural gas flow rates in boiler systems. The stainless steel housing and tungsten carbide shaft and bearings are durable in any compatible environment. The unique wafer style design is fast and easy to install between two 2 in ANSI flanges, reducing costly downtime. The B142 meter is compatible with the B3000 flow monitor for a complete flow monitoring system. The B142 is also compatible with most standard computers, simplifying configuration within existing systems.
- Consistent, reliable gas flow measurement
- Wafer mount - better fit in limited spaces
- Lightweight balanced rotor quick response to changes in flow rate
- No mating flange design - allows quick and easy installation
- Durable - reliable performance in harsh environmental conditions
- 304 stainless steel bearing mounts, 316 stainless steel set screws and pressure port plug, tungsten carbide bearings and rotor shaft, 410 stainless steel rotor
- 3 in of water column (7.5 mbar) at maximum rated flow rate (dry air)
- 100 mV P-P minimum output voltage when used with B111113 magnetic pickup
Specifications
Item Number | BGR-B142-20H |
Brand | Veris |
Application | Flow; Nat. Gas |
Fitting Material | Stainless Steel |
Fitting Size | 2" |
Fitting Type | Squeeze |
Flow Measurement Accuracy | ±2% |
Flow Measurement Range | 35 - 350 ACFM (0.99 - 9.9 AC mm) |
Flow Measurement Repeatability | ±0.5% |
Flow Sensor Type | Impeller |
Measurement Type | Flow |
Medium | Natural Gas |
Operating Fluid Temperature | -40 - 330 °F (-40 - 165 °C) |
Operating Temperature | -40 - 330 °F (-40 - 165 °C) |
Outputs | Frequency output |
Pipe Material | Copper | Polymer | Steel | Stainless Steel |
Product Certification | UL | CE |
Product Type | Sensor |
Range | B142 Series |
Standards | ANSI 12.27.01 |
Warranty | 1 year |
