BGR-8SDI0H1N10-0200 | Meter | SDI | SS | 1-1/2"to10"pipe | HTp | 4-20mA | Veris

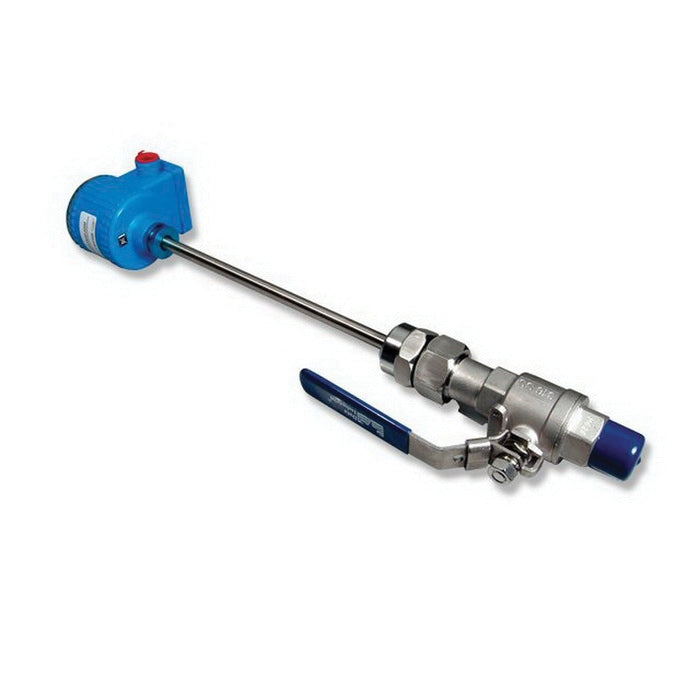

4 to 20 mA Hot Tap Insert Liquid Flow Sensor with Stainless Steel/PPS Plastic Tip, 1-1/2 to 10 in

Brand: VerisSKU: BGR-8SDI0H1N10-0200

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BGR-8SDI0H1N10-0200

Jump to: Overview & Specifications Reviews

Overview Details for BGR-8SDI0H1N10-0200

Meter | SDI | SS | 1-1/2"to10"pipe | HTp | 4-20mA

The direct insert style liquid flow sensor with stainless steel/PPS plastic tip combines flow sensing with a built-in transmitter for an all in one flow measuring system. This device fits all 1-1/2 to over 36 in pipes, and it is intended for direct installation into the pipe through a 1 in NPT hole. In the hot tap installation, the sensor is mounted in the pipe under pressure by attaching a service saddle or weld-on fitting to the pipe. Then the sensor assembly is attached to an isolation valve and extended into the pipeline to measure flow. Hot tap installations are often required in retrofit projects, but even in new construction, a hot tap sensor can be desirable for service considerations.

NEMA 4 housing - rugged and weather-proof
FKM O-ring, tungsten carbide (standard) shaft, stainless steel impeller, torlon bearing
0.5 psi or less at 10 fps for all pipe sizes 1-1/2 in diameter and up

Specifications

Item Number	BGR-8SDI0H1N10-0200
Brand	Veris
Application	Flow
Display Type	None
Field Programmable	Yes
Fitting Material	Stainless Steel \| Polymer
Fitting Size	1.5 to 10"
Flow Measurement Accuracy	±2%
Flow Measurement Range	1 - 20 ft/s (0.3 - 6 m/s)
Flow Measurement Repeatability	±0.5%
Flow Sensor Type	Impeller
Hot-Tap Option	Yes
Measurement Type	Flow
Medium	Water based liquids
O-Ring Type	FKM (Standard)
Operating Fluid Temperature	14 - 150 °F (-10 - 65 °C)
Operating Temperature	14 - 150 °F (-10 - 65 °C)
Output Specifications	4-20mA Scaled
Outputs	4-20mA output
Pipe Material	Copper \| Polymer \| Steel \| Stainless Steel
Product Type	Sensor
Range	SDI Series
Shaft Material	Tungsten Carbide (Standard)
Warranty	1 year
