BGR-8SDI0D2N00-0200 | Meter | SDI | SS | 10"to36"pipe | Ins | FreqOut | Veris

Standard Frequency Pulse Direct Insert Liquid Flow Sensor with Stainless Steel/PPS Plastic Tip, 1-1/2 to 10 in

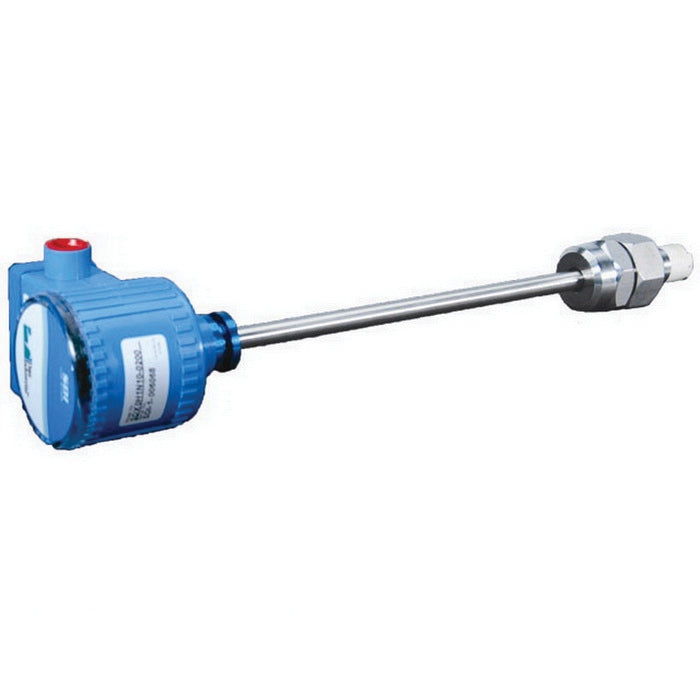

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BGR-8SDI0D2N00-0200

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris BGR-8SDI0D2N00-0200 Documents

Datasheet More Info

Overview

Details for BGR-8SDI0D2N00-0200

Meter | SDI | SS | 10"to36"pipe | Ins | FreqOut

The direct insert style liquid flow sensor with stainless steel/PPS plastic tip combines flow sensing with a built-in transmitter for an all in one flow measuring system. This device fits all 1-1/2 to over 36 in pipes, and it is intended for direct installation into the pipe through a 1 in NPT hole.

NEMA 4 housing - rugged and weather-proof
FKM O-ring, tungsten carbide (standard) shaft, stainless steel impeller, torlon bearing
0.5 psi or less at 10 fps for all pipe sizes 1-1/2 in diameter and up

Specifications

Item Number	BGR-8SDI0D2N00-0200
Brand	Veris
Application	Flow
Display Type	None
Field Programmable	Yes
Fitting Material	Stainless Steel \| Polymer
Fitting Size	1.5" to 10"
Flow Measurement Accuracy	±2%
Flow Measurement Range	1 - 20 ft/s (0.3 - 6 m/s)
Flow Measurement Repeatability	±0.5%
Flow Sensor Type	Impeller
Hot-Tap Option	No
Measurement Type	Flow
Medium	Water based liquids
O-Ring Type	FKM (Standard)
Operating Fluid Temperature	14 - 150 °F (-10 - 65 °C)
Operating Temperature	14 - 150 °F (-10 - 65 °C)
Outputs	Frequency output
Pipe Material	Copper \| Polymer \| Steel \| Stainless Steel
Product Type	Sensor
Range	SDI Series
Shaft Material	Tungsten Carbide (Standard)
Warranty	1 year
