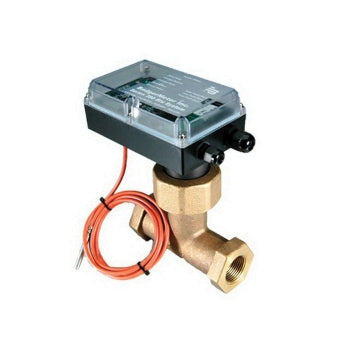

BGR-8A301-20 | Flow,Prog Cable w/CD for Badger,Serial | Veris
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BGR-8A301-20
Documents and manuals
Veris BGR-8A301-20 Documents
Overview
Details for BGR-8A301-20
Specifications
Item Number | BGR-8A301-20 |
Brand | Veris |
Application | Flow and BTU determination |
Communication | ModBus (RTU) | BACnet (MS/TP) |
Energy Units | BTU | kBTU | mBTU | kWh | MWh | kJoules | MJoules | Tons | custom |
Field Programmable | Yes |
Fitting Material | Brass | Polymer |
Fitting Size | 2" NPT |
Fitting Type | Threaded |
Flow Measurement Accuracy | ±2% |
Flow Measurement Range | 10.5 - 157.3 GPM (40 - 595 LPM) |
Flow Measurement Repeatability | ±0.5% |
Flow Sensor Type | Impeller |
Measurement Type | BTU |
Medium | Water based liquids |
Operating Fluid Temperature | 20 - 260 °F (-6.7 - 126.7 °C) |
Operating Temperature | 20 - 260 °F (-6.7 - 126.7 °C) |
Output Specifications | Scaled Pulse |
Outputs | Protocol Communication | Pulse output |
Pipe Material | Copper | Polymer | Steel | Stainless Steel |
Product Type | Sensor |
Range | 380 Series |
Standards | IEC 751 Class B |
Temperature Measurement Accuracy | ±0.5% |
Temperature Measurement Range | 20 - 260 °F (-6.7 - 126.7 °C) |
Totalizer Quantities | 1 |
Totalizer Resettable | No |
Warranty | 1 year |
