BGR-8340BN/MB-03 | Trans | Freq in | BTU out | W-Tight plast encl | Veris

Flow Transmitter, BTU, Modbus and BACnet, Plastic Weathertight Enclosure

Brand: VerisSKU: BGR-8340BN/MB-03

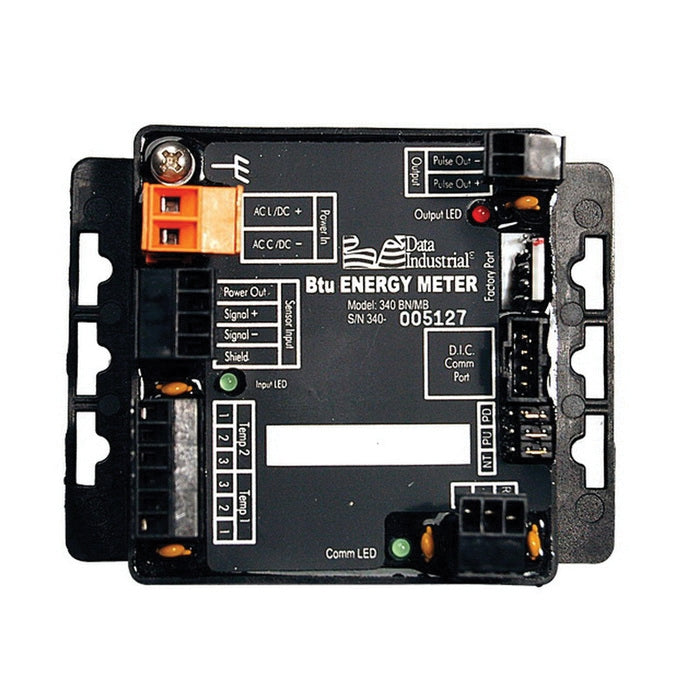

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BGR-8340BN/MB-03

Jump to: Overview & Specifications Reviews

Overview Details for BGR-8340BN/MB-03

3x0 programmable transmitters are capable of converting the frequency signal from any compatible flow sensors to a preferred output type (analog, scaled pulse, protocol). In addition to standard square wave signals, it can also accept a sine wave, making it a versatile transmitter for numerous applications. While the 340 models offer communication protocols (N2, BACnet/Modbus or LonWorks), with energy (Btu) measurement (appropriate software and programming cables are required for installation).

Compact - saves space in crowded enclosures
Plastic weathertight enclosure

Compact - saves space in crowded enclosures
Plastic weathertight enclosure

Specifications

Item Number	BGR-8340BN/MB-03
Brand	Veris
Application	Flow transmitter
Communication	ModBus (RTU) \| BACnet (MS/TP)
Energy Units	BTU \| kBTU \| MBTU \| kWh \| MWh \| kJ \| MJ
Field Programmable	Yes
Flow Measurement Range	Frequency range 4…1000 Hz
Measurement Type	BTU
Operating Temperature	32 - 158 °F (0 °- 70 °C)
Outputs	Protocol Communication
Product Type	Transmitter
Range	340 BTU series
Totalizer Quantities	1
Totalizer Resettable	No
Warranty	1 year
