Documents: BGR-8250BR0705-1211

Datasheet More Info

BGR-8250BR0705-1211 | Meter | Std Imp | 3/4"Tee | Brass | Freq | Veris

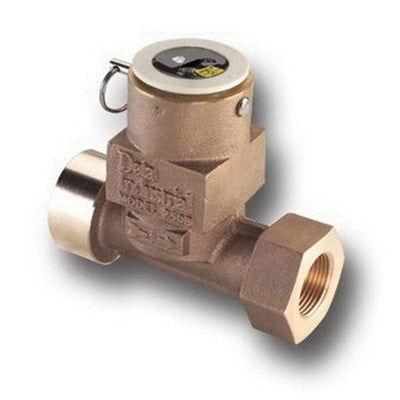

Liquid Flow Sensor with Brass Tee, 3/4 in

Brand: VerisSKU: BGR-8250BR0705-1211

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BGR-8250BR0705-1211

Jump to: Overview & Specifications Reviews

Overview Details for BGR-8250BR0705-1211

Meter | Std Imp | 3/4"Tee | Brass | Freq

Metal tee-style liquid flow sensor with cast brass housing fits 1/2 to 1-1/2 in NPT. These sensors are accurate, even at low flow rates. Use in conjunction with a flow monitor or transmitter for a complete flow monitoring system.

Signal can travel up to 2000 ft between the sensor and the display unit without the need for amplification
Operation and repeatability even at low flow rates
Six-bladed impeller design with a proprietary, non-magnetic sensing mechanism for high accuracy and repeatability, forward-swept impeller is less prone to fouling by water-borne debris, reliable performance with minimal downtime
No amplification - signal can travel up to 2000 ft between the sensor and the display unit without the need for amplification
PPS electronics housing
Standard electronics
Wetted materials - pennlon bearing, nylon impeller, tungsten carbide shaft, EPDM O-rings

Specifications

Item Number	BGR-8250BR0705-1211
Brand	Veris
Application	Flow
Fitting Material	Brass \| Stainless Steel \| Polymer
Fitting Size	0.75" NPT
Fitting Type	Threaded
Flow Measurement Accuracy	±1%
Flow Measurement Range	2.5 - 54 GPM (10 - 204 LPM)
Flow Measurement Repeatability	±0.7%
Flow Sensor Type	Impeller
Hot-Tap Option	No
Medium	Water based liquids
Operating Fluid Temperature	Rated 221 °F (105 °C) continuous
Outputs	Frequency output
Pipe Material	Copper \| Polymer \| Steel \| Stainless Steel
Product Certification	CE Equipment Class A EN 50082-2 and EN 55019
Product Type	Sensor
Range	250 Series
Warranty	1 year
