BGR-8250BR0505-1211 | Meter | Std Imp | 1/2"Tee | Brass | Freq | Veris
Liquid Flow Sensor with Brass Tee, 1/2 in

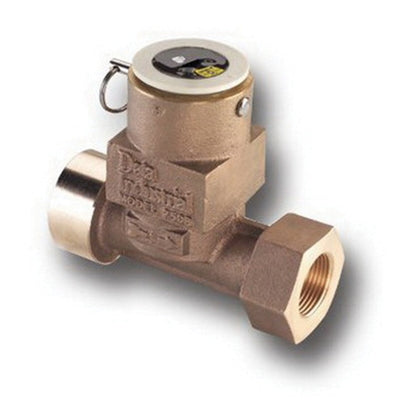

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BGR-8250BR0505-1211
Overview Details for BGR-8250BR0505-1211
Meter | Std Imp | 1/2"Tee | Brass | Freq
Metal tee-style liquid flow sensor with cast brass housing fits 1/2 to 1-1/2 in NPT. These sensors are accurate, even at low flow rates. Use in conjunction with a flow monitor or transmitter for a complete flow monitoring system.
- Signal can travel up to 2000 ft between the sensor and the display unit without the need for amplification
- Operation and repeatability even at low flow rates
- Six-bladed impeller design with a proprietary, non-magnetic sensing mechanism for high accuracy and repeatability, forward-swept impeller is less prone to fouling by water-borne debris, reliable performance with minimal downtime
- No amplification - signal can travel up to 2000 ft between the sensor and the display unit without the need for amplification
- PPS electronics housing
- Standard electronics
- Wetted materials - pennlon bearing, nylon impeller, tungsten carbide shaft, EPDM O-rings
Specifications
Item Number | BGR-8250BR0505-1211 |
Brand | Veris |
Application | Flow |
Fitting Material | Brass | Stainless Steel | Polymer |
Fitting Size | 0.5" NPT |
Fitting Type | Threaded |
Flow Measurement Accuracy | ±1% |
Flow Measurement Range | 1.8 - 27 GPM (7 - 102 LPM) |
Flow Measurement Repeatability | ±0.7% |
Flow Sensor Type | Impeller |
Hot-Tap Option | No |
Medium | Water based liquids |
Operating Fluid Temperature | Rated 221 °F (105 °C) continuous |
Outputs | Frequency output |
Pipe Material | Copper | Polymer | Steel | Stainless Steel |
Product Certification | CE Equipment Class A EN 50082-2 and EN 55018 |
Product Type | Sensor |
Range | 250 Series |
Warranty | 1 year |
