BGR-8228BR2005-1211 | Flow | Sensor | Insert | Brass | 2in Brz Tee | Veris

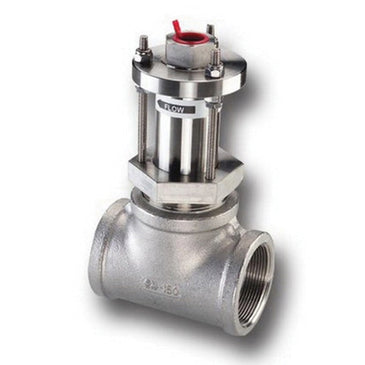

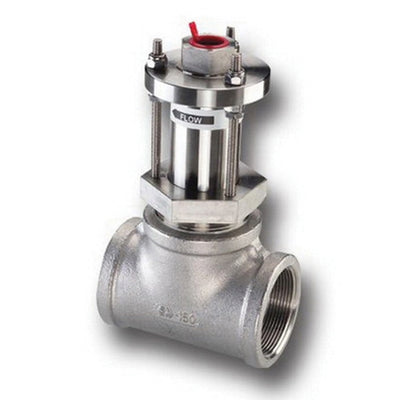

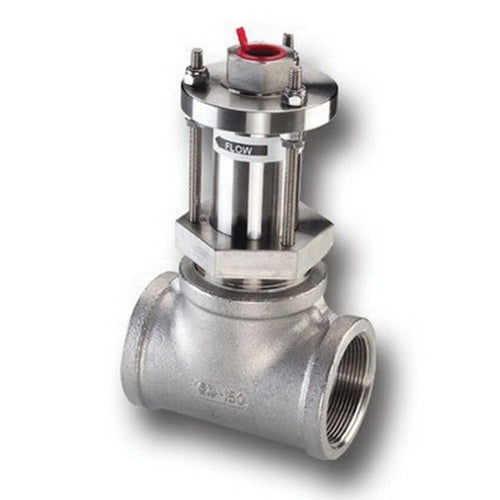

Insert Liquid Flow Sensor with Brass Tee, 2 in

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BGR-8228BR2005-1211

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris BGR-8228BR2005-1211 Documents

Datasheet More Info

Overview

Details for BGR-8228BR2005-1211

Flow | Sensor | Insert | Brass | 2in Brz Tee

These sensors can be purchased with a bronze tee. Sensor output is a frequency that indicates flow rate. Used in conjunction with a compatible flow monitor or transmitter, these non-magnetic flow sensors provide an accurate reading of the rate of liquid flow, as well as total accumulated flow.

Signal can travel up to 2000 ft between the sensor and the display unit without the need for amplification
Six-bladed impeller design with a proprietary, non-magnetic sensing mechanism for high accuracy and repeatability, forward-swept impeller is less prone to fouling by water-borne debris, reliable performance with minimal downtime
PPS electronics housing
Standard electronics
Pennlon bearing, nylon impeller, tungsten carbide shaft, EPDM O-rings

Specifications

Item Number	BGR-8228BR2005-1211
Brand	Veris
Application	Flow
Fitting Material	Brass \| Steel \| Polymer
Fitting Size	2"
Flow Measurement Accuracy	±1% of F.S.
Flow Measurement Range	0.5 - 30 ft/s (0.2 - 9 m/s)
Flow Measurement Repeatability	±0.3% of F.S.
Flow Sensor Type	Impeller
Hot-Tap Option	No
Medium	Water based liquids
Operating Fluid Temperature	Rated 221 °F (105 °C) continuous
Outputs	Frequency output
Pipe Material	Copper \| Polymer \| Steel \| Stainless Steel
Product Certification	CE Equipment Class A EN 50082-2 and EN 55016
Product Type	Sensor
Range	228 Series
Warranty	1 year
