VB1016-HY2-FC4P00 | Circulator Pump (Variable Speed) | Cast Iron | 115V | Single Phase | 0.54A | Flanged | 16 GPM | 10ft Max Head | 125 PSI Max Press. | Series 007e | Taco (OBSOLETE)
Documents and manuals
Taco VB1016-HY2-FC4P00 Documents
Overview
Details for VB1016-HY2-FC4P00
Circulator Pump (Variable Speed) | Cast Iron | 115V | Single Phase | 0.54A | Flanged | 16 GPM | 10ft Max Head | 125 PSI Max Press. | Series 007e
![](https://supplyfile.com/images/taco/badge_taco.png)

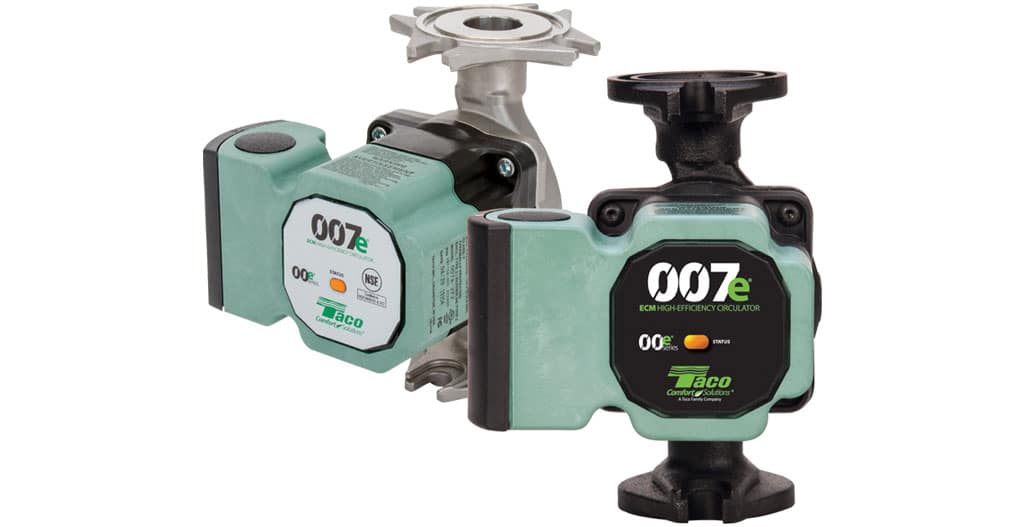

007e ECM High-Efficiency Circulator
The legacy of the 00®. The efficiency of ECM.
If a 007 is all you need, why not step up to high efficiency? The Taco 007e® ECM High-Efficiency Circulator is engineered with ECM variable speed technology. Its performance is equivalent to the legendary 007 yet it uses up to 85% less electricity. It is ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. Efficiency aside, the 007e delivers the reliability that’s made Taco famous. Install it, forget it.® What’s more, the 007e ECM High-Efficiency Circulator has some great features you won’t find anywhere else.
Performance Data
Flow Range: 0-16 GPM
Head Range (ft): 0-10′
Max. Operating Pressure:
– Cast Iron: 125 psi (8.6 bar)
– Stainless Steel: 150 psi (10 bar)
Max. Water Temp.: 230°F (110°C)
Min. Water Temp.: 36°F (2°C)
Voltage: 120V, 60 Hz Single phase
Max. Operating Power: 44W
Max. AMP Rating: 0.54
Connection Sizes (in): ¾” – 1½”
Features
- BIO BARRIER® protects the circulator from system contaminants (Cast Iron only)
- SureStart®, a Taco exclusive feature, is your no-callback safety net. It automatically purges air and unblocks the pump to keep it trouble-free.
-
Convenience. The 007e makes your job easier.
• Dual electrical knock-outs
• 6″ stranded wire leads for easy wiring
• Double Insulated. No ground necessary.
• Integral Flow Check (IFC®) included - Cast Iron Casing
Applications
- Closed loop hydronic systems
- Open loop potable water
- Domestic water recirculation
- Indoor use only
- Water or maximum of 50% water/glycol solution
Specifications
Item Number | VB1016-HY2-FC4P00 |
Brand | Taco |
Amps | 0.54A |
Connection | Flanged |
HP | |
Material | Cast Iron |
Max Flow | 16 GPM |
Max Head Pressure | 10ft |
Max Pressue | 125 PSI |
Optional | |
Phase | Single Phase |
Pump Type | Circulator Pump (Variable Speed) |
RPM | |
Series | Series 007e |
Type | Pump |
Voltage | 115V |
